FRONT AXLE HUBS
FOR AXLE MODELS: Ford 7000
HUB NO.
DESCRIPTION
TYPE
05-16005-XXX
Front Axle Hub
Outboard Drum
10 Hole
Serrated Studs
INNER BEARING
CUP
CONE
BOLT CIRCLE
45220
8.858”
OUTER BEARING
CUP
CONE
25820

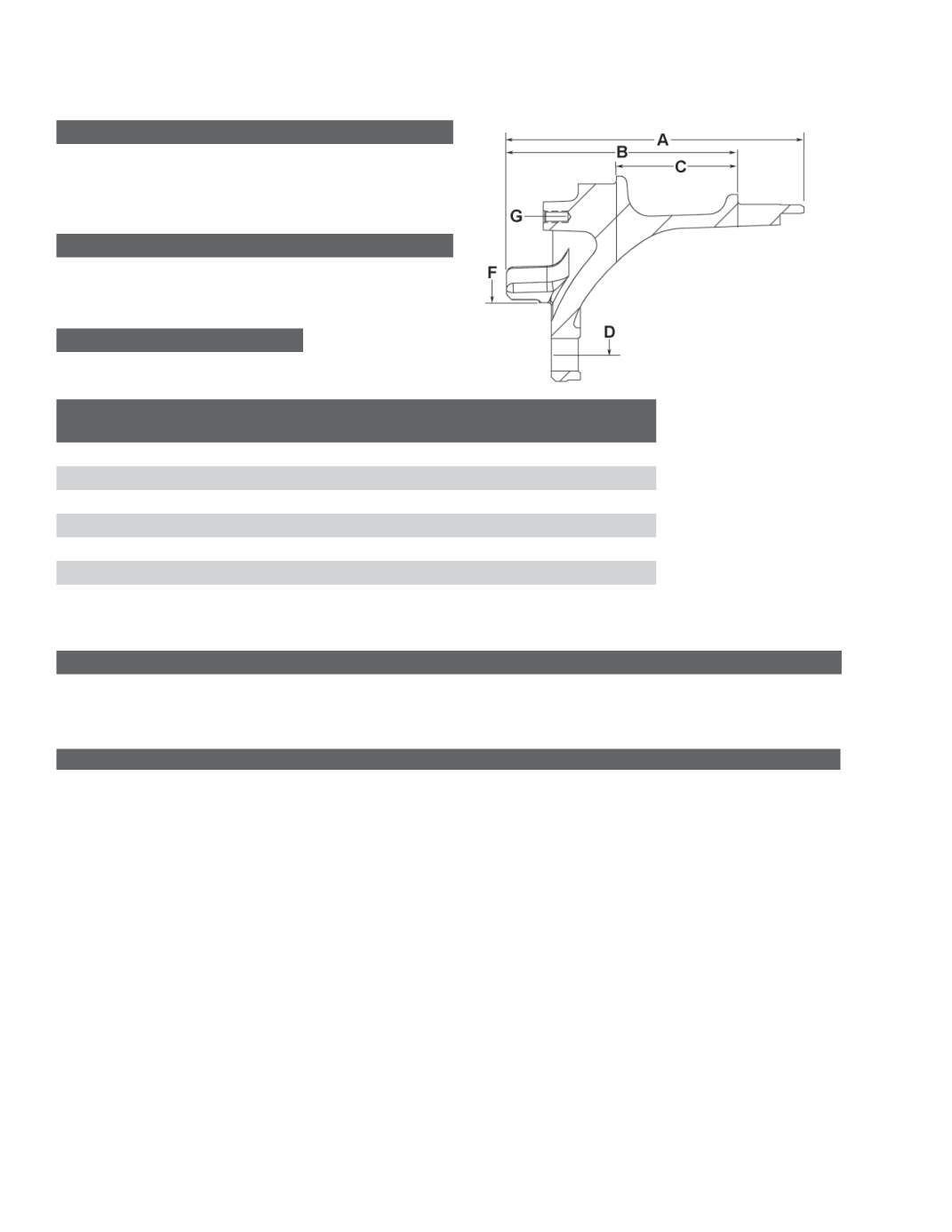

DRAWING
REFERENCE
ITEM
DIMENSION
A
Overall Length
7.42”
B
Outer Hub Cap Face To Inner Bearing Cup Seat
4.46”
C
Distance Between Cups
3.125”
D
Bolt Circle Diameter
8.858”
E
Wheel Stud Quantity
10
F
Pilot Diameter
6.69”
G
Drive Flange Hole Pattern
4, 5/16”-18; 3.62” B.C.
HUB PILOTED - Hub Assemblies without Drum or Rotor
HUB PART NUMBER
WHEEL TYPE
DRUM TYPE
WHEEL STUD
ABS RING NUMBER
05-16005-002
09-002216
09-002227
WHEEL STUDS USED WITH HUB IN ASSEMBLIES
WHEEL STUD NO.
THREAD TYPE SIZE
STYLE
WHEEL TYPE
USE WITH DRUM TYPE
09-002216
Serrated M14 x 1.5
Hub Piloted
