FRONT AXLE HUBS
FOR AXLE MODELS: Ford 7000 Early Design
HUB NO.
DESCRIPTION
TYPE
05-15997-XXX
Front Axle Hub
Outboard Drum
8 Hole
Serrated Studs
INNER BEARING
CUP
CONE
BOLT CIRCLE
45220
10.827”
OUTER BEARING
CUP
CONE
25820

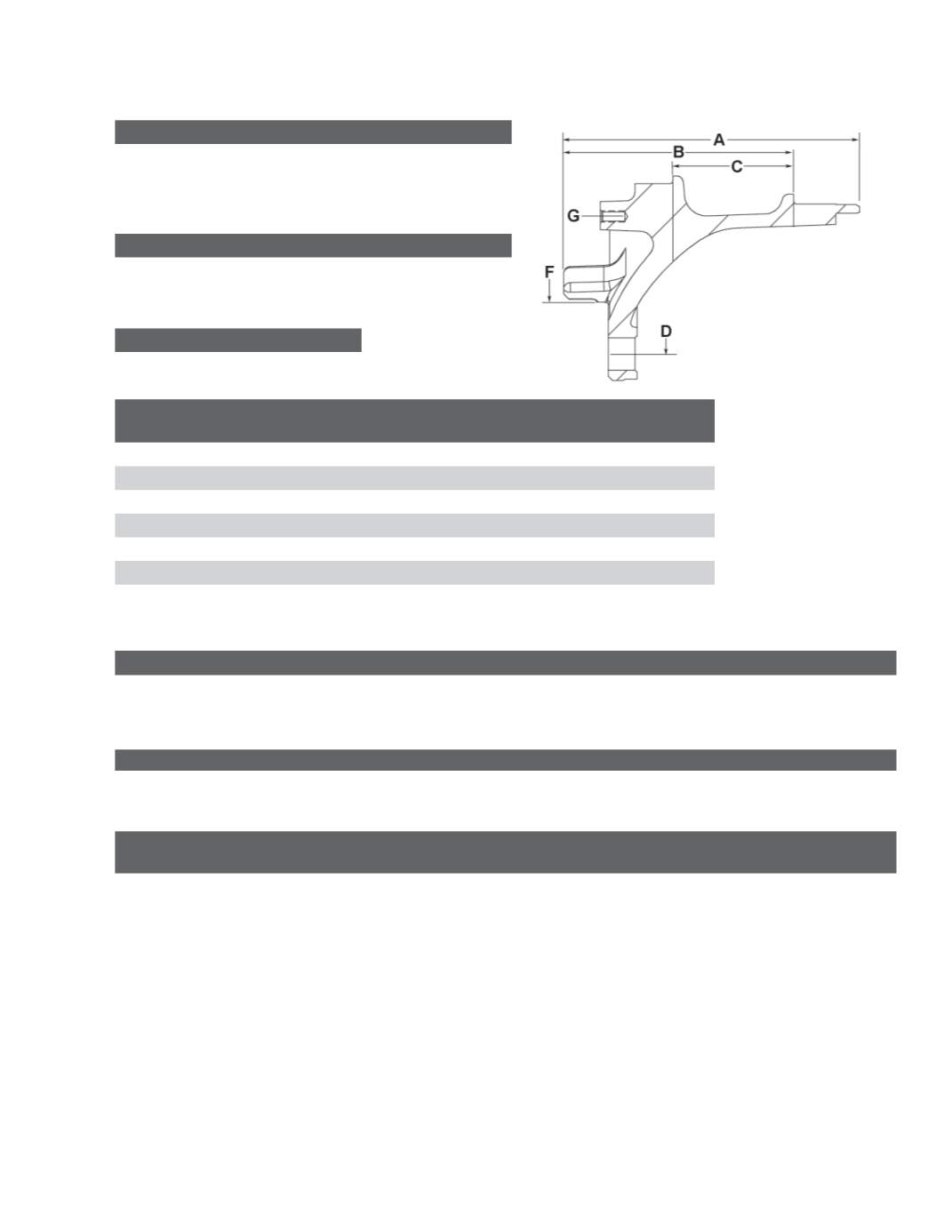

DRAWING
REFERENCE
ITEM
DIMENSION
A
Overall Length
6.95”
B
Outer Hub Cap Face To Inner Bearing Cup Seat
4.47”
C
Distance Between Cups
3.125”
D
Bolt Circle Diameter
10.827”
E
Wheel Stud Quantity
8
F
Pilot Diameter
8.691”
G
Drive Flange Hole Pattern
4,5/16”-18; 3.62” B.C.
HUB PILOTED - Hub and Rotor Assemblies
HUB PART NUMBER
WHEEL TYPE
WHEEL STUD NUMBER ABS RING NUMBER
ROTOR NUMBER
ROTOR O.D.
17-15997-1000
09-001988
09-002139
23-123522-002
15.56
WHEEL STUDS USED WITH HUB IN ASSEMBLIES
WHEEL STUD NO.
THREAD TYPE SIZE
STYLE
WHEEL TYPE
USE WITH DRUM TYPE
09-001998
Serrated 3/4”-16 L
Stud Piloted
ROTORS USED WITH HUB IN ASSEMBLIES
BOLT HOLES
ROTOR PART NO.
OUTSIDE DIA.
OVERALL DEPTH BOLT CIRCLE DIA.
DIAMETER
NUMBER
PILOT DIA.
23-123522-009
15.00
4.44
7.25
.594
10
6.00
