TRAILER HUBS
FOR AXLE MODELS: Dana Spicer D-21, K-21
Eaton C, C2, CB, CD, CD2, HC, HCE, E, ED, EH, 20L, 22L, 22R, 230C
Ingersoll A19H, A19S, DC19H
Meritor RL, TK, TL, TKLD, TKL
Standard Forge A-19H, A-19S
HUB NO.
DESCRIPTION
TYPE
04-15413-XXX
Trailer Axle Hub
Outboard Drum
10 Hole
Serrated Studs
INNER BEARING
CUP
CONE
BOLT CIRCLE
HM218210
HM218248
13.189”
OUTER BEARING
CUP
CONE
HM212011
HM212049

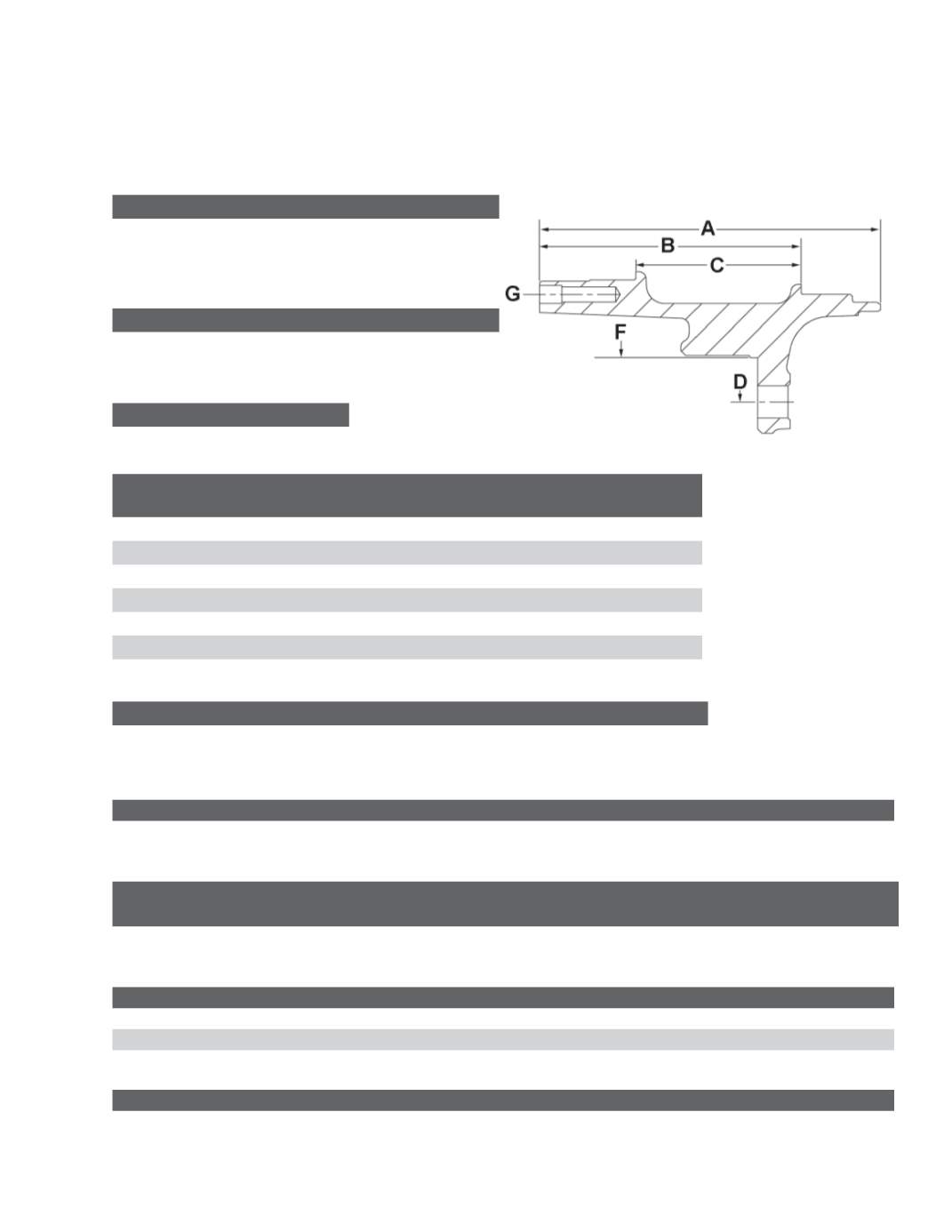

DRAWING
REFERENCE
ITEM
DIMENSION
A
Overall Length
6.93”
B
Outer Hub Cap Face To Inner Bearing Cup Seat
4.74”
C
Distance Between Cups
3.35”
D
Bolt Circle Diameter
13.189”
E
Wheel Stud Quantity
10
F
Pilot Diameter
11.25”
G
Drive Flange Hole Pattern
6, 5/16”-18; 5.50” B.C.
HUB PART NUMBER
ABS RING NUMBER
COMMENTS
04-15413-007
Wheel studs not included
HUB PILOTED - Hub Assemblies without Drum
HUB PART NUMBER
WHEEL TYPE
DRUM TYPE
STUD NUMBER
ABS RING NUMBER
04-15413-006
09-002003
HUB PILOTED - Hub and Drum Assemblies
HUB PART NUMBER WHEEL TYPE
DRUM
TYPE STUD NUMBER
ABS RING
NUMBER
DRUM SIZE
DRUM NUMBER DRUM POSITION
14-15413-1032
Steel
Cast
09-001989
16.5 x 7
03-123025-002
Outboard
WHEEL STUDS USED WITH HUB IN ASSEMBLIES
WHEEL STUD NO.
THREAD TYPE SIZE
STYLE
WHEEL TYPE
USE WITH DRUM TYPE
09-001989
Serrated M22 x 1.5
Hub Piloted
Steel Wheel
Cast
09-002003
Serrated M22 x 1.5
Hub Piloted
Aluminum Wheel
Cast
DRUMS USED WITH HUB IN ASSEMBLIES
DRUM NO.
DRUM TYPE
BRAKE SIZE
OVERALL DEPTH
PILOT DIAMETER
03-123025-002
Cast Non-Balanced
16.50” x 7.00”
10.59”
11.25”
