LED STROBES & BEACONS
WAR
Customer Service: 800-562-5012 / Technical Support: 888-562-5012
142

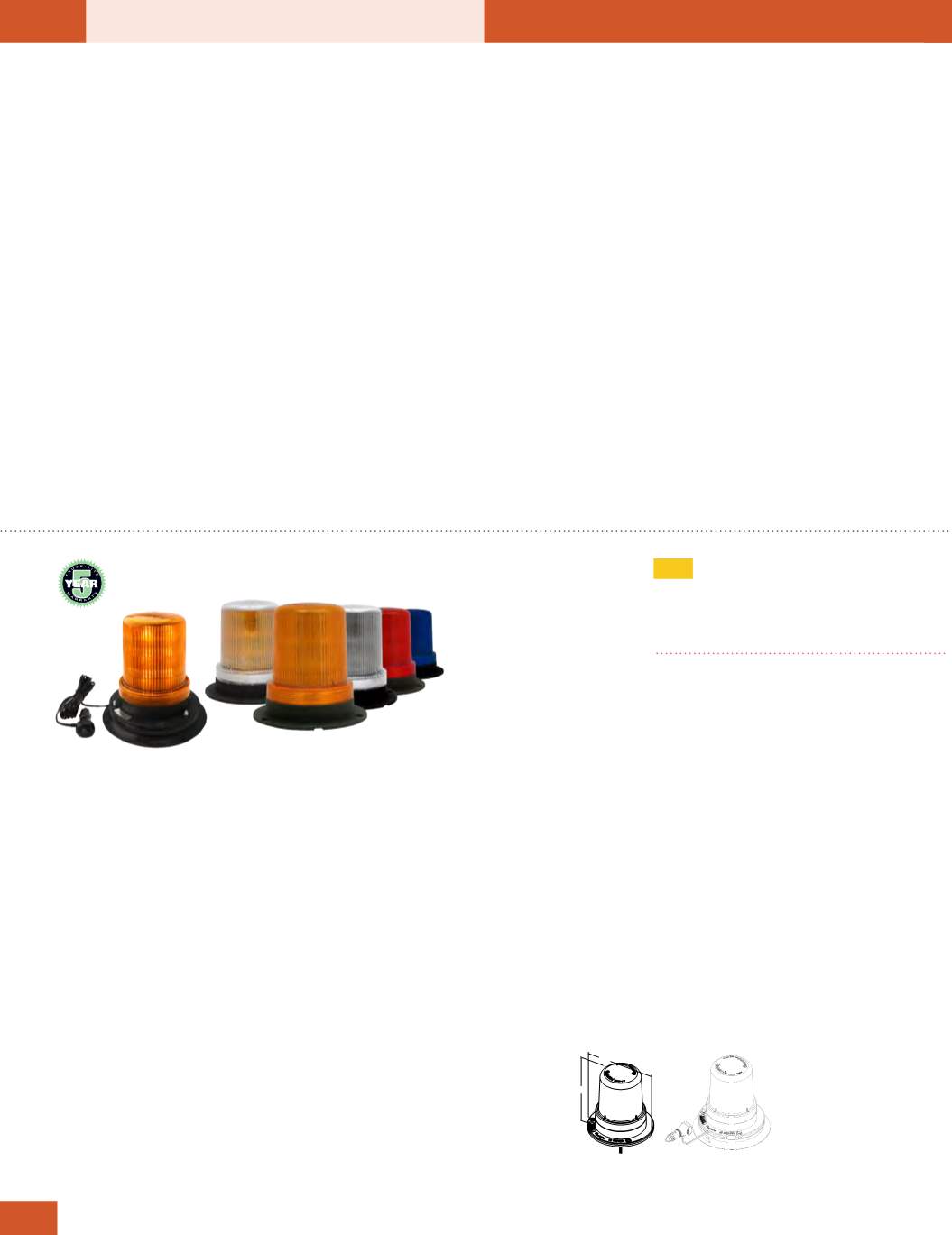

LED
Warning Lamp
Class 1
Medium Profile
Dual & Quad Flash
Material:
• Polycarbonate lens
• Die cast aluminum housing
• Blunt cut 18 gauge wire
Light Source:
• 18 Light Emitting Diodes
(LEDs)
• 12v designed at 13.5 volts w/
peak current at 3 amps
• 24v designed at 13.5 volts w/
peak current at 3 amps
• 12v meets SAE J845 Class 1
legal functions at 12v - 16v,
operational at 8v - 16v
• 24v meets SAE J845 Class 1
legal functions at 12v - 16v,
operational at 8v - 16v
• Operates from -40˚F to 158˚F
(-40˚C to 70˚C)
Replacement Parts:
• 99250R clear lens
• 92545 guard
• Additional color options excellent option for city/county municipal,
cement mixer & other heavy-duty, construction or off-road applications
• Dual & quad class i flash patterns meet legal functions
• Designed for surface mount as well as pipe mount (1” NPT pipe thread)
• Electronics & light source fully encapsulated in epoxy to protect
components from moisture damage & corrosives
• Protected against industry-standard electrical transient per SAE J1455
• Linear supply offers reduced EMI over that of gaseous discharge systems
• Threaded lens design does not require tool to replace lens
• Designed without external optics to reduce maintenance & cleaning
• Mounting gasket & #10 installation screws included
• Cigarette plug features on/off switch with LED indicator light
6.81"
6.83"
Mounts on 6.1 dia. 120° holes
92569Y Magnetic mount lamp, yellow, 12v
92565Y Permanent mount lamp, yellow, 12v
92565R Permanent mount lamp, red, 12v
92565C Permanent mount lamp, clear, 12v
92565B Permanent mount lamp, blue, 12v
92566Y Permanent mount lamp, clear lens yellow LEDs
92568Y Permanent mount lamp, yellow, 24v
92568R Permanent mount lamp, red, 24v
92568B Permanent mount lamp, blue, 24v
The classification of warning lamps is meant to aide in the differentiation of lamps and output based on application and
need. Some applications require brighter light output, while others require light output of a different direction or visibility.
Class I - The Class I lighting classification differentiates warning lights with the sole purpose of being used in applications
in motion at the speed of traffic.
Class II - Class II lighting products are designed for vehicles that are in motion, but not to the speed of traffic.
Class III - Class III products are designed for products that are not in motion at all.
CLASS I, II & III CLASSIFICATIONS
FLASHES PER MINUTE
Flashes per minute, also noted as flashes per sequence, depicts the number of pulses or spikes a lamp generates within
one minute of activity. Flashes per second are usually depicted as single flash, dual flash or quad flash, with the pulses
being grouped together in series of flashes. A great benefit that SWL lamps provide is in their qualification of the flash
being 100% accurate. With the quad flash of an SWL lamp, four flashes of equally high intensity are recorded prior to a
separation gap. When gas discharge lamps generate their quad flash pattern, the first flash peaks at a level greater than
that of the three following spikes, as the lamp needs to recover from its use of power in order to create the next large flash.
All four flashes are not equal, but all can be “counted” equally in determining flashes per second or flashes per minute.
