ACCESSORIES
Truck-Lite Full Line Product Catalog
Customer Service: 800-562-5012 / Technical Support: 888-562-5012
245
ACC
PART
Truck-LiteCo., Inc.•310E.ElmwoodAve.•Falconer,NY14733 •Phone : (800)562-5012 •Fax: (888)685-6412 •Web :www.truck-lite.com •email : [email protected]
96247 - LED Stop, Turn & Tail Fit N’ Forget Pigtail
96249 - PL10 Pigtail
96248 - Model 19 Pigtail
96250 - PL3 Pigtail
96251 - Male Pin Pigtail
96252 - LED Marker & Clearance Fit N’ Forget Pigtail
96253 - .180 Receptacle Pigtail
96255 - Alligator Clip Pigtail
96254 - Packard Metri-Pak Pigtail
White Wire - Ground
Red Wire - Major Function
Black Wire - Minor Function
WARNING
: DO NOT CONNECT MULTIPLE LAMPS
WARNING
: DO NOT LEAVE TESTER ON FOR EXTENDED
PERIODS OF TIME
12 Vv Power Supply
1. Choose appropriate pigtail for the
lamp you would like to test.
2. Insert male Packard Metri-Pak
connector on 12 V power supply into
female Packard Metri-Pak connector on
pigtail
3. Connect Lamp to be tested to pigtail
4. Plug in 12v power supply to test lamp
Female
Packard Metri-Pak
Connection
Connection
to Lamp
NOTE
: To test lamps with major and minor functions
use the red wire on pigtail for major functions
and black wire on pigtail for minor functions
For use with 12 V Power Supply
1. Choose appropriate pigtail for the lamp you would like to test.
2. Insert male Packard Metri-Pak connector on battery power
supply into female Packard Metri-Pak connector on pigtail
3. Connect Lamp to be tested to pigtail
4. Connect terminal ends of battery power supply pigtail to
battery power supply to test lamp
For use with Battery Power Supply
(Sold Separately)
Part # 96256 Battery Power Supply Pigtail
(Sold Separately)
+
-
1/4” female spade
terminals attach to 12v
battery (Sold Separately)

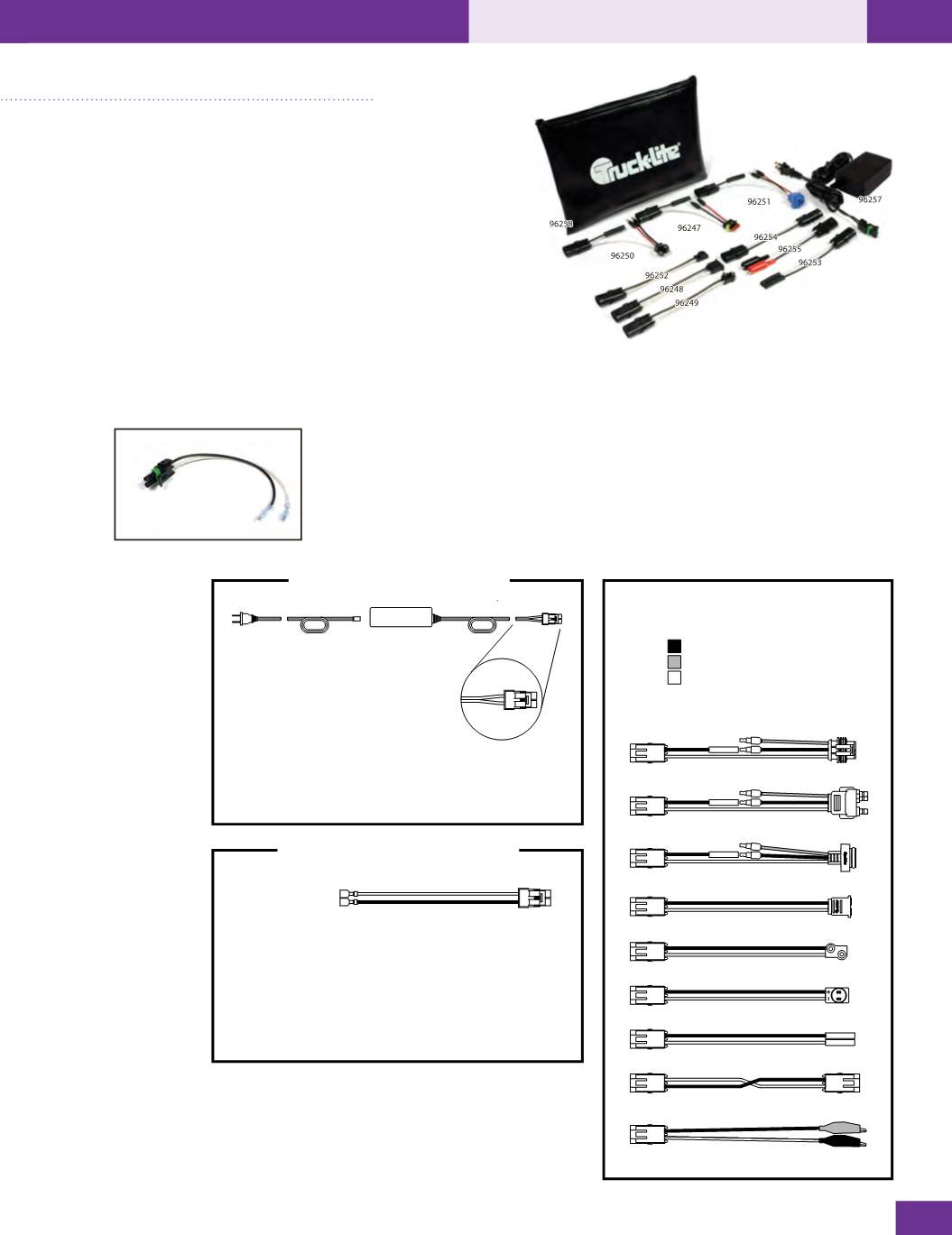

Lighting Test Kit — Instructions For Use
Male
Packard Metri-Pak
Connection
• Quickly checks functions of Truck-Lite LED & incandescent lamps
• Includes durable zipper bag to conveniently store all included parts
Test Kits
Material:
• 12 volt power supply
• 9 pigtails to cover most LED & incandescent
connections
Kit Components:
• 96247 LED STT Fit ’n Forget plug
• 96248 Model 19 pigtail
• 96249 PL10 pigtail
• 96250 PL3 pigtail
• 96251 Male pin pigtail
• 96252 LED MC Fit ’n Forget plug
• 96253 .180 receptacle pigtail
• 96254 Packard metri-pak pigtail
• 96255 alligator clip pigtail
• 96257 12v power supply
(included w/96259 kit)
• 96258 storage bag
96256 Battery power
supply pigtail
AVAILABLE SEPARATELY
96259 Light test kit w/12v power supply
96260 Light test kit w/o power supply
96256 Battery power supply pigtail
