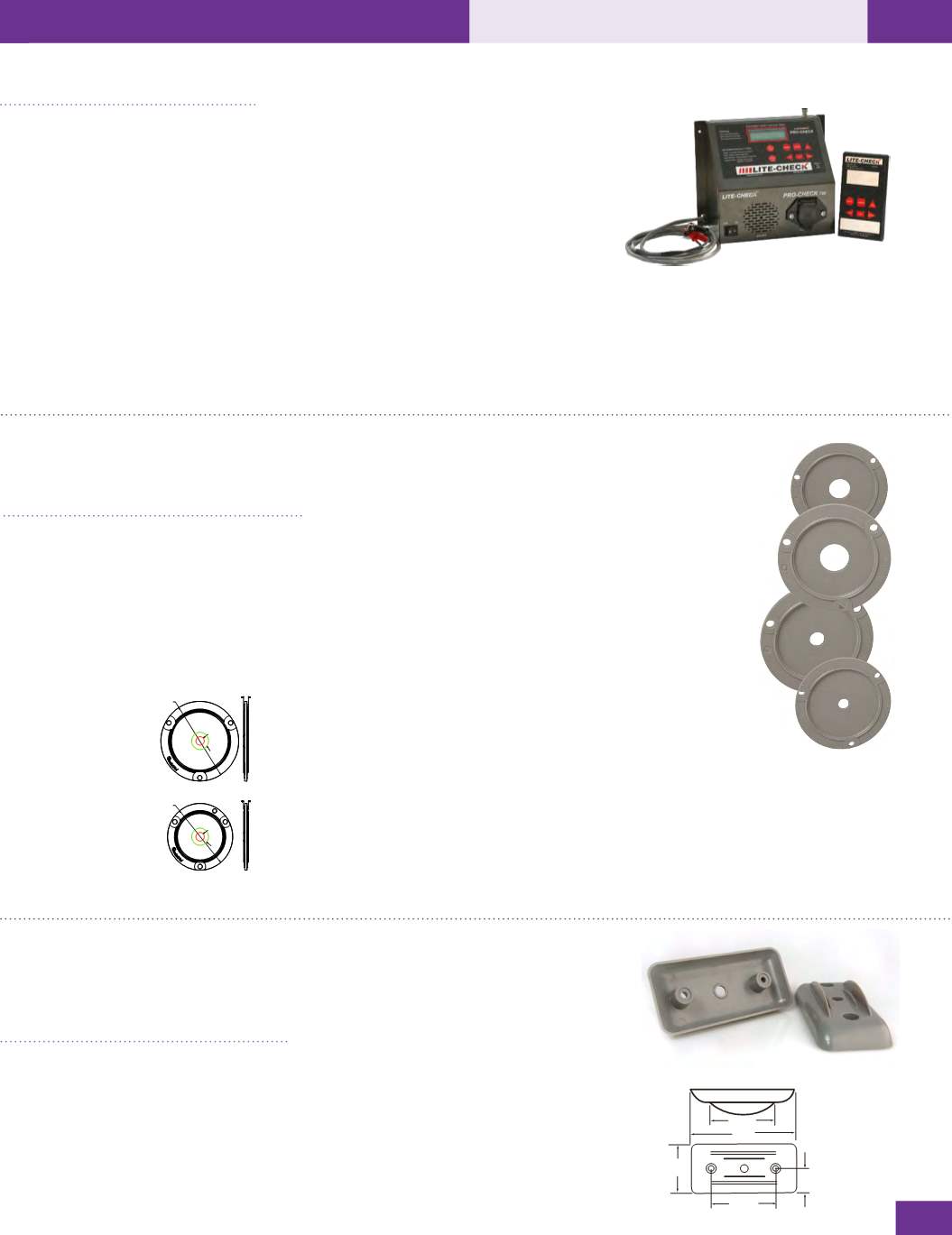

ACC
• Today, the process of pre-inspecting your vehicle before you head out on the road is
more important than ever
• This system is designed to speed up your
inspection times, and it virtually eliminates
undetected electrical problems
• Features a remote-controlled active
computer direct fault indication system,
with 10 second automatic analysis of all
electrical circuits
• The easy-to-read digital display provides a
direct readout of electrical faults, including
open circuits, open grounds, shorts and chassis ground faults
• Saves up to 25% of the time needed to troubleshoot and inspect trailer systems
• Provides an easy way to upgrade incandescent lamps to high
quality Truck-Lite 33 Series & 36 Series M/C lamps, which offer
Limited Lifetime warranties
• Mounting plates can be installed into every 2” round (30 series) or
2.5” round (10 series) mounting holes
• Adapterplates utilize the same
mounting holes of standard 2” & 2.5” mounting flanges
5.00
3.15
2.28
3.00
1.14
• Design maintains PC rating and is
specifically for 36 series Flex-Lite C/M lamps
• Inner wings assure placement every time
• Outer wings provide extra protection
from branches and other objects
brushing against the vehicle
• Plateable gray ABS allows for
superior weatherability, leading
to lower maintenance costs
Flex-Lite Mounting
Bracket
For 36
®
Series
Flex-Lite
Material:
• Gray ABS Plastic
Additional specifications:
• Recommended screw torque of
15-20 lbs.
• 0.08” wall thickness
Light Kit Check
Material:
97330 System
• Operates on a DC system,
through the use of a vehicle
battery or regulated 12v power
system
97331 System
• Operates on a AC system,
through direct connection to a
110v standard wall outlet
3.5”
2.9”
30133 /30136
A.30133MountingHole B.30136MountingHole
10133 /10136
A.10133MountingHole B.10136MountingHole
B
A
.22”
.22”
B
A
M/C Adapter Plates
For 10 & 30 Series
Flange Products
Material:
•
Polycarbonate construction
Mounting Holes:
• 10133 & 30133 use a 3/4”
through hole for 33 Series Lamp
use
• 10136 & 30136 use a 3/8”
through hole for 36 Series Lamp
use
33 Series M/C Lamps
•33250R - P2 lamp, Red
•33250Y - P2 lamp, Yellow
•33275R - PC lamp, Red
•33275Y - PC lamp, Yellow
•33285R - PC lamp, Red w/ Clear Lens
•33285Y - PC lamp, Yellow w/ Clear Lens
36 Series M/C Lamps
•36105R - P2 lamp, Red w/ Side Exit Wires
•36105Y - P2 lamp, Yellow w/ Side Exit Wires
•36115R - PC lamp, Red w/ Rear Exit Wires
•36115Y - YPC lamp, Yellow w/ Rear Exit Wires
Recommended Accessories:
10133 33 series adapter for 10 series installations
10136 36 series adapter for 10 series installations
30133 33 series adapter for 30 series installations
30136 36 series adapter for 30 series installations
36705 Gray
97330 12v, DC powered system
97331 110v, AC powered system
