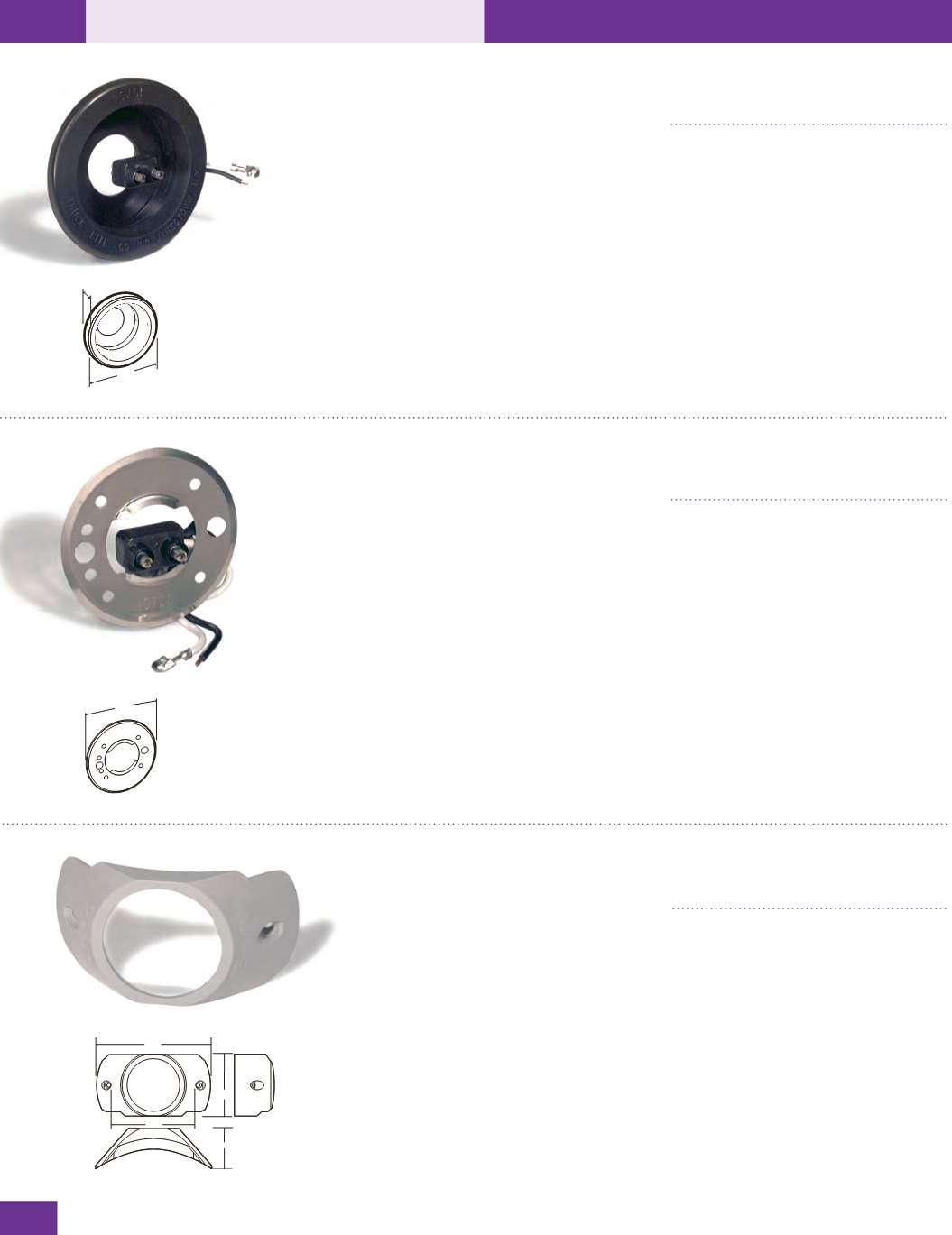

MOUNTING
Customer Service: 800-562-5012 / Technical Support: 888-562-5012
250
ACC
10400
Curved Bracket
For 2-1/2” Lamps
Material:
• Polycarbonate bracket
• Designed to mount on a 4.6”
radius corner• Screws mount perpendicular to radius
• Allows lamp to be surface mounted in
a grommet
• Suitable for PC requirements on a 45˚
angle when using LED or incandescent
PC rated/combination lamps
5.860
3.160
2.050
4.400
Surface Mounts
For 2-1/2” Lamps
Material:
• Stainless steel mount
• 16 gauge wire
Kit Components:
10400 mount kit:
1 - 10720 mount
1 - 94902 plug
10004R/Y kits:
1 - 10202R lamp
1 - 10720 mount
1 - 94902 plug
3” Grommet Mounts
For 2-1/2” Lamps
Material:
• PVC grommet
• 16 gauge wire
Kit Components:
10404 grommet kit:
1 - 10704 grommet
1 - 94902 plug
• Designed for recess mounting
• Suitable for PC requirements on a 45˚
angle when using LED or incandescent
PC rated/combination lamps
• Adapts to surface thickness up to .125”
• Replaces Signal-Stat 9121
• Rust resistant stainless steel mount
• Quick cam-on, cam-off lamp installation
• Suitable for PC requirements on a 45˚
angle using all 2-1/2” diameter lamps
• Mounts with screws to surface
• Not recommended for use with Signal-
Stat LED products
• Replaces Signal-Stat 9394
2.50
0.156 screw hole diameter
1.875 bolt hole clearance
1.25 clearance hole
3.62
.875
3.0 mounting hole
10738 Mount
10704 Black, grommet
10706 White. grommet
10404 Grommet kit
10004R Red
10720 Mount
10400 Mount kit
