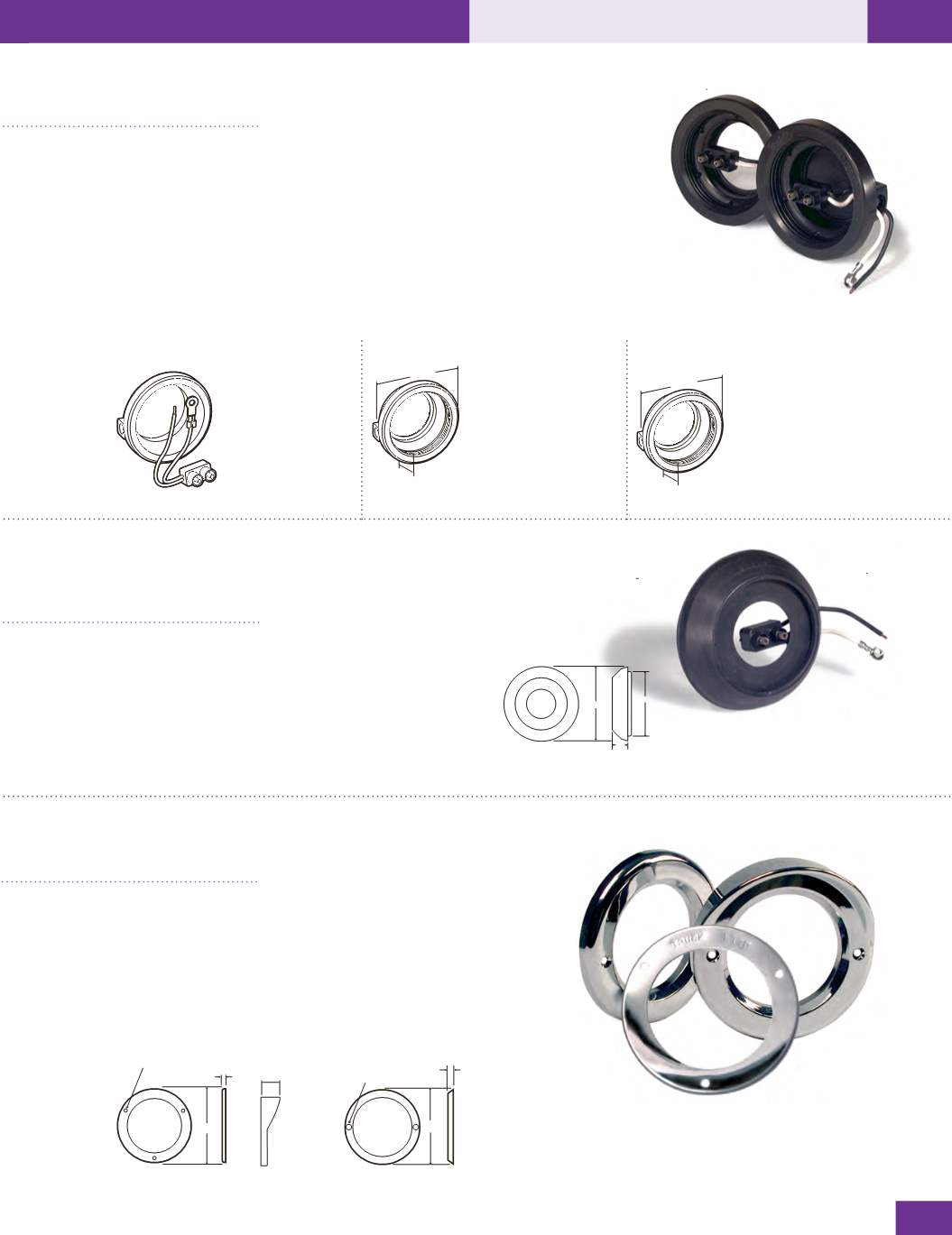

MOUNTING
Customer Service: 800-562-5012 / Technical Support: 888-562-5012
249
ACC
10403
10401
10402
10715
10719
10740
• Designed for edge lighting
• Suitable for PC requirements on a 45˚ angle
using all 2-1/2” diameter lamps
• Adapts to surface thickness up to .25”
3.500
.732
3.120
2.781 mounting hole
Diaphragm
Grommet
For 2-1/2” Lamps
Material:
• Rubber grommet
• 16 gauge wire
Kit Components:
10403 grommet kit:
1 - 10708 grommet
1 - 94902
Grommet Mounts
For 2-1/2” Lamps
Material:
• PVC grommet
• Thermal plastic rubber (TPR)
• 16 gauge wire
Kit Components:
10401 open back kit:
1 - 10700 grommet
1 - 94902 plug
10402 closed back kit:
1 - 10702 - grommet
1 - 94902 plug
• Flush mounts 2-1/2” diameter lamps
• Wide groove for panel thickness up to .250”
• Narrow groove for panel thickness up to .125”
• Suitable for PC requirements on a 45˚ angle
when using LED or incandescent PC rated/
combination lamps
• Closed back versions recommended for open
installation where splash plate is not used
• Replaces Signal-Stat 9119 & 9156
.413
3.395
0.125 dia
grommet cover
3.500
.143
0.196 dia
flange cover
1.125
3.00
.125 dia
visor
Mounting Covers
For 2-1/2” Mounts
Material:
• Polished stainless steel
flange cover
• Chrome plated plastic
grommet covers
Narrow Groove Grommets
10713 Black, open back
10714 Black, closed back
3.25
1.12
Grommet Kits
10401 Open back
10402 Closed back
Wide Groove
Open Back Grommets
10700 Black
Closed Back Grommets
10702 Black
10718 Black TPR
3.31
1.12
• Designed to enhance appearance
of lamps
• Flange cover offers improved theft
resistance
• Screws required
Recommended hole 2.781 dia.
10403 Grommet, kit
10708 Grommet
10740
Grommet cover
10719 Grommet cover w/visor
10715 Flange cover
