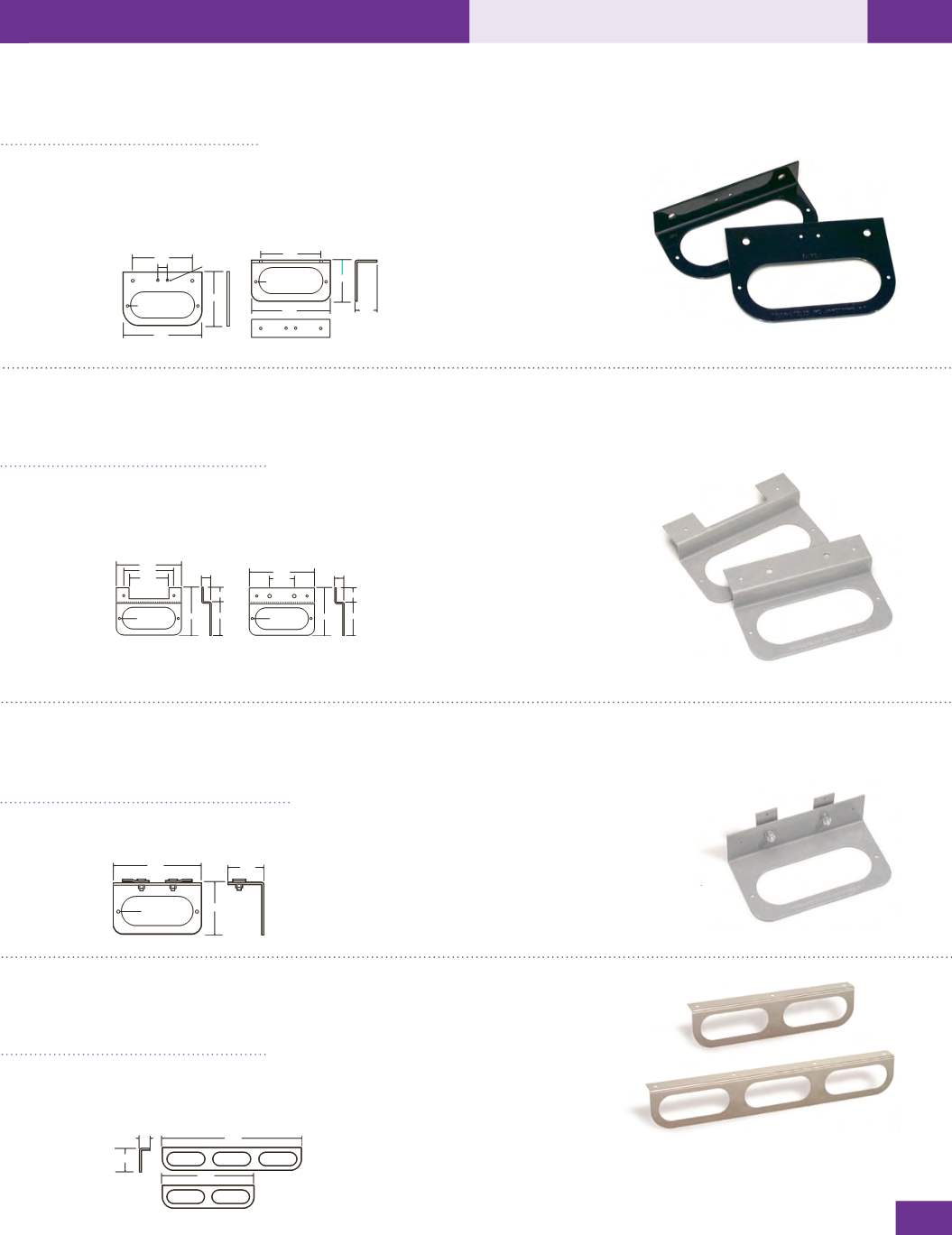

Mounting Brackets
For 60 Series
Products
Material:
• Steel bracket
60738
60733
60728
60737
8.250
4.740
2.250
.170 dia
8.250
5.750
6.250
4.250
4.000
1.250
1.750
8.250
5.750
.170dia
3.410
4.000
1.250
1.750
.170dia
0.370 screw hole diameter
60733
60728
0.200 screw hole diameter
• Features gray epoxy painted steel
• Designed for use with grommet mounted Model 60 products
• Set of clamps included for side turn applications
• Most trailers do not require drilling or welding for installation
Mounting Bracket
For 60 Series
Products
Material:
• Steel Bracket
• “Z” configuration is designed for mounting side turn lamps on most trailers
• Notched flange version offers solution for trailer frame interference
• Features gray epoxy painted steel
• Designed for use with grommet
or flange mounted 60 series products
Mounting Bracket
For 60 Series
Products
Material:
• Steel or aluminum
• Features epoxy black painted steel or aluminum construction
• Designed for 60 series products with grommet or flange mounts
• Available withor without flange
• Replaces Signal-Stat 9292
8.250
5.590
6.250
1.25
.250dia
8.250
4.000
1.750
6.250
.170dia
.170dia
Mounting Brackets
For 60 Series
Products
Material:
• Stainless steel brackets
24.75
16.50
4.00
1.60
• Features bright finished stainless
steel for corrosion resistance, added
strength &durability
• Designs available for mounting two or
three lamps systems
• Replaces Signal-Stat 9290S
60729
Bracket
60728
Bracket
60733
Bracket w/notch flange
60720 Mount, steel w/flange
60722
Mount, steel w/o flange
60723
Mount, aluminum w/flange
60724
Mount, aluminum w/o flange
60737
Bracket, two lamp
60738
Bracket, three lamp
8.250
5.590
6.250
1.25
.250dia
8.250
4.000
1.750
6.250
.170dia
.170dia
