263 / 348

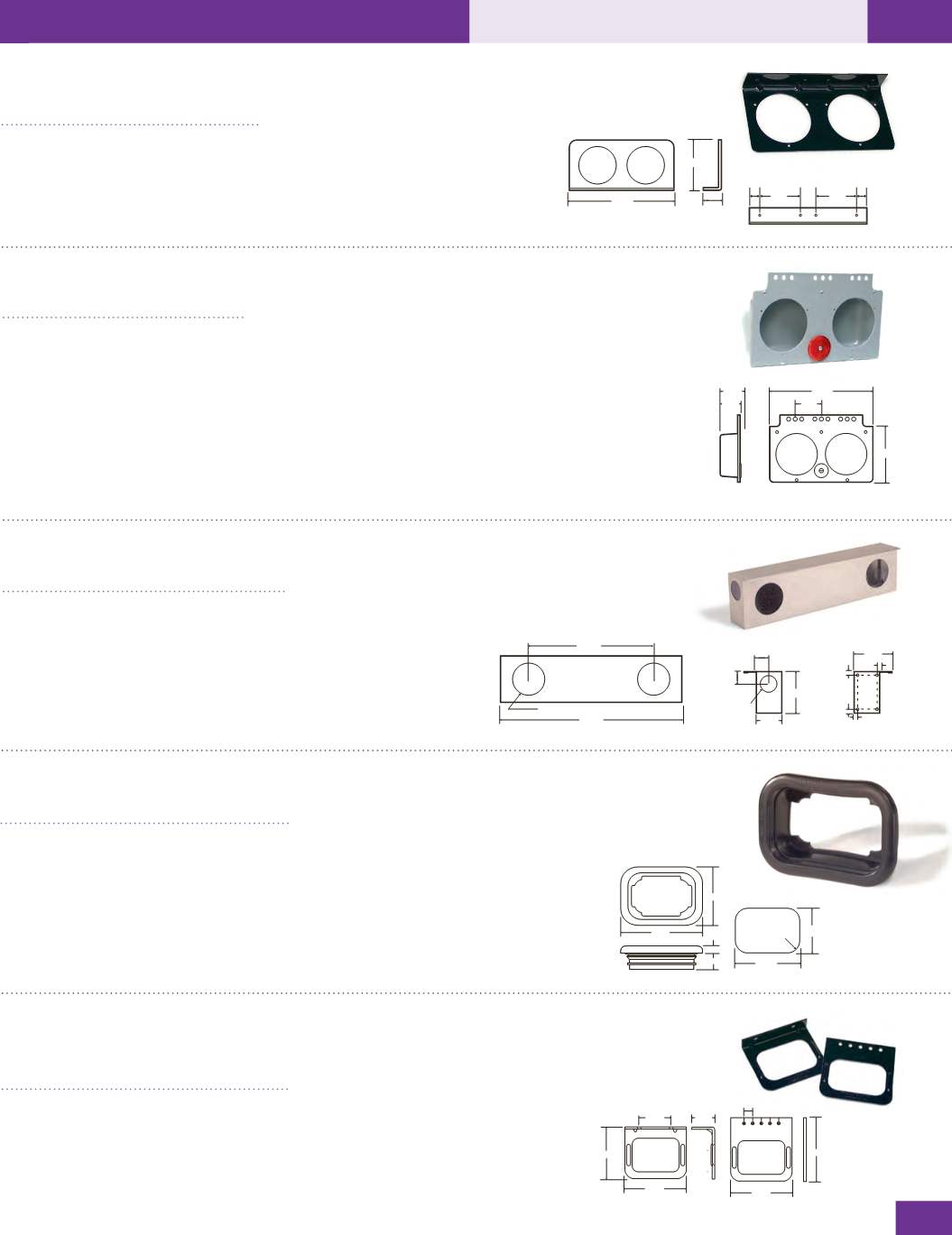

MOUNTING
Customer Service: 800-562-5012 / Technical Support: 888-562-5012
261
ACC
40680
• Popular on most tanker applications
• Designed for use with two 4” & one 2-1/2”
grommet mounted lamps
Mounting Brackets
For 45 Series
Products
Material:
• Painted reinforced steel
Mounting Bracket
For 4” Lamps
Material:
• Steel bracket
Module Bracket
For 4” Lamps
Material:
• Stainless steel
• Features black epoxy painted steel
• Designed for two 4” lamps in 4-1/2” holes
• Replaces Signal-Stat 9239
4.500 Dia.
27.000
19.000
5.000
7.000
4.000
2.000
2.000
0.75
0.75
2.750 Dia.
0.75
0.75
4.500Dia.
27.000
19.000
5.000
7.000
4.000
2.000
2.000
0.75
0.75
2.750Dia.
0.75
0.75
12.060
6.210
2.040
1.00
1.00
4.00
4.00
0.230 screw hole diameters
4.000 bolt hole centers
12.060
6.210
2.040
1.00
1.00
4.00
4.00
Module Bracket
For 4” Lamps
Material:
• Metal Bracket
• Designed as replacement for many OEM trailer
applications
• Includes red reflector
• Accepts all 4” grommet or flanged mount lamps
• Replaces Signal-Stat 9524
3.06
2.59
3.75
7.75
12.88
0.380 screw hole diameter
Grommet Mounts
For 45 Series Lamps
Material:
• PVC grommet
• Designed for flush mounting 45 series lamps
• Standard grommet mounts in plate thickness of 1/8” to 3/8”
• LLV grommet designed specifically for Model 45 LLV lamps
mounted in plate thickness of 1/16” to 3/32”
• Replaces Signal-Stat 9175 & 9329
45700
6.875
4.000
1.335
5.800
1.0TYP
0.370 screw
hole diameter
• Features rust resistant black epoxy painted reinforced steel
• Mount using the 45700 grommet
• Available with or without flange
• Replaces Signal-Stat 9287
45720
45721
6.875
4.000
1.335
5.800
6.980
6.875
1.0TYP
1.270
6.290
4.420
.370
5.450
3.580
1.000R
1.270
6.290
4.420
.370
5.450
3.580
1.000R
Mounting hole size
40715 Bracket
40680
LH bracket
40681
RH bracket
40725 Bracket
45700
Standard grommet
45701
LLV grommet
45720 Bracket with flange
45721 Bracket without flange
