FRONT AXLE HUBS
FOR AXLE MODELS: Dana Spicer I-160, I-180, I-200, I-220
Eaton EFA-18F3, EFA-20T2, EFA-22T2/T5, EFA-24T2/T5
Meritor FG-942, FL-931, FL-941, FL-943, FL-951
HUB NO.
DESCRIPTION
TYPE
05-16008-XXX
Front Axle Hub
Outboard Drum
10 Hole
Serrated Studs
INNER BEARING
CUP
CONE
BOLT CIRCLE
6420
6461A
11.25”
OUTER BEARING
CUP
CONE
552A
555S

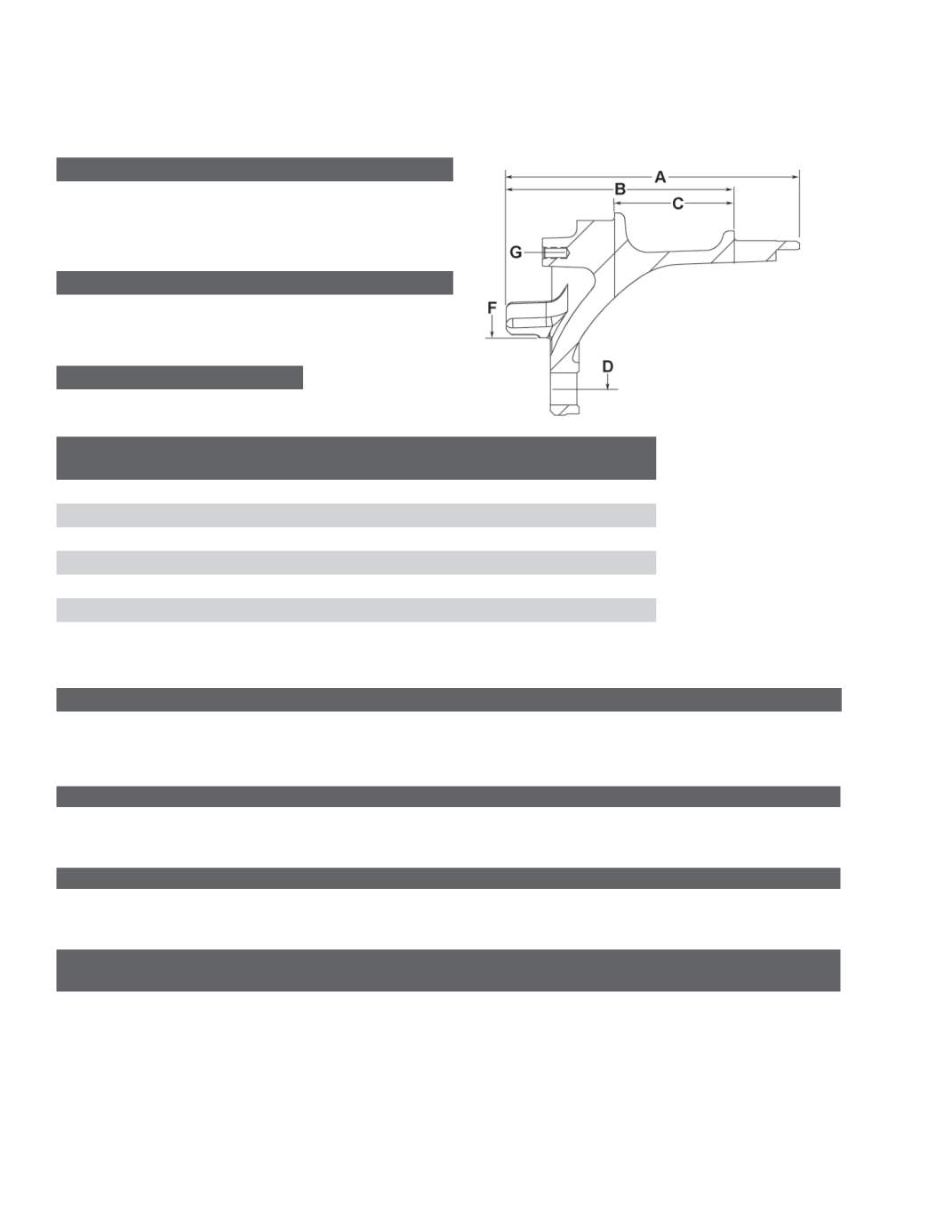

DRAWING
REFERENCE
ITEM
DIMENSION
A
Overall Length
7.37”
B
Outer Hub Cap Face To Inner Bearing Cup Seat
4.144”
C
Distance Between Cups
2.335”
D
Bolt Circle Diameter
11.25”
E
Wheel Stud Quantity
10
F
Pilot Diameter
8.65”
G
Drive Flange Hole Pattern
6, 3/8”-16; 6.00” B.C.
HUB PILOTED - Hub Assemblies without Drum or Rotor
HUB PART NUMBER
WHEEL TYPE
DRUM TYPE
WHEEL STUD
ABS RING NUMBER
05-1600-8098-P72
09-002228
09-002166
HUB PILOTED - Hub and Rotor Assemblies
HUB PART NUMBER
WHEEL TYPE
WHEEL STUD NUMBER ABS RING NUMBER ROTOR NUMBER ROTOR O.D.
17-16008-1000
09-002228
09-002166
23-123642-002
17.09
WHEEL STUDS USED WITH HUB IN ASSEMBLIES
WHEEL STUD NO.
THREAD TYPE SIZE
STYLE
WHEEL TYPE
USE WITH DRUM TYPE
09-002228
Serrated M22 x 1.5
Hub Piloted
ROTORS USED WITH HUB IN ASSEMBLIES
BOLT HOLES
ROTOR PART NO.
OUTSIDE DIA.
OVERALL DEPTH BOLT CIRCLE DIA.
DIAMETER
NUMBER
PILOT DIA.
23-123642-002
17.087
5.644
10.500
.63-18 UNF
10
8.500
