FRONT AXLE HUBS
FOR AXLE MODELS: Dana Spicer I-100, I-120, I-140, W15
Eaton EFA-12F3, EFA-12F4, EFA-13F4
Meritor FF-931, FF-941, FF-942, FF-943, FF-944, FF-961, FG-931, FG-900, FG-941, FG-943
Westport F3W-1200, F3W-1400, F6W-1200, F6W-1400
HUB NO.
DESCRIPTION
TYPE
05-16034-XXX
Front Axle Hub
Outboard Drum
10 Hole
Serrated Studs
INNER BEARING
CUP
CONE
BOLT CIRCLE
HM212011 HM212047 or HM212049
11.25”
OUTER BEARING
CUP
CONE
3720
3782

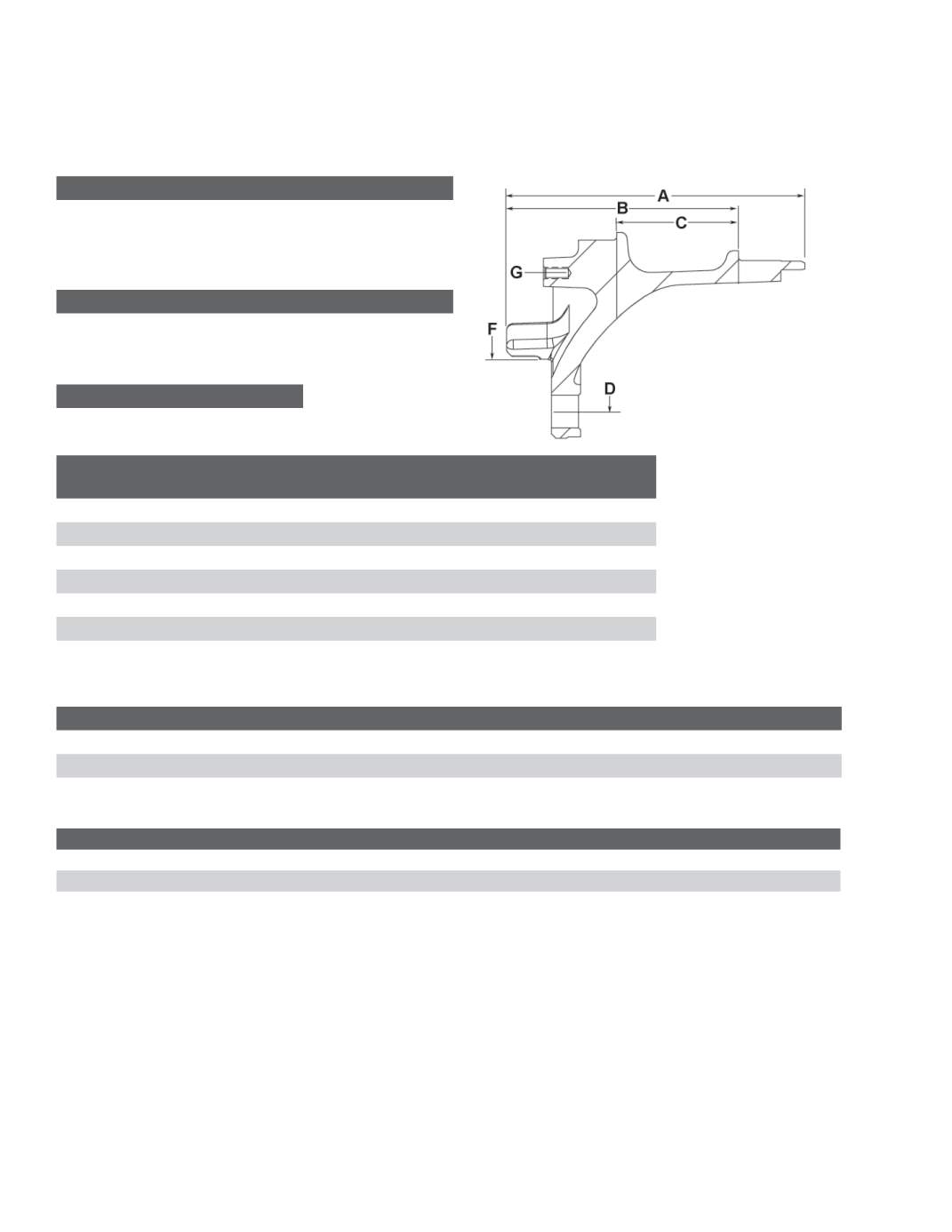

DRAWING
REFERENCE
ITEM
DIMENSION
A
Overall Length
7.847”
B
Outer Hub Cap Face To Inner Bearing Cup Seat
4.873”
C
Distance Between Cups
3.375”
D
Bolt Circle Diameter
11.25”
E
Wheel Stud Quantity
10
F
Pilot Diameter
8.78”
G
Drive Flange Hole Pattern
6, 5/16”-18; 4.50” B.C.
HUB PILOTED - Hub Assemblies without Drum or Rotor
HUB PART NUMBER
WHEEL TYPE
DRUM TYPE
WHEEL STUD
ABS RING NUMBER
05-16034-003
09-001988
3237L1260
05-16034-005
09-001989
3237L1260
WHEEL STUDS USED WITH HUB IN ASSEMBLIES
WHEEL STUD NO.
THREAD TYPE SIZE
STYLE
WHEEL TYPE
USE WITH DRUM TYPE
09-001988
Serrated M22 x 1.5
Hub Piloted
Steel
Cast
09-001989
Serrated M22 x 1.5
Hub Piloted
Steel Wheel
Cast
