FRONT AXLE HUBS
FOR AXLE MODELS: Navistar
HUB NO.
DESCRIPTION
TYPE
05-16010-XXX
Front Axle Hub
Outboard Drum
10 Hole
Serrated Studs
INNER BEARING
CUP
CONE
BOLT CIRCLE
45220
8.858”
OUTER BEARING
CUP
CONE
25820

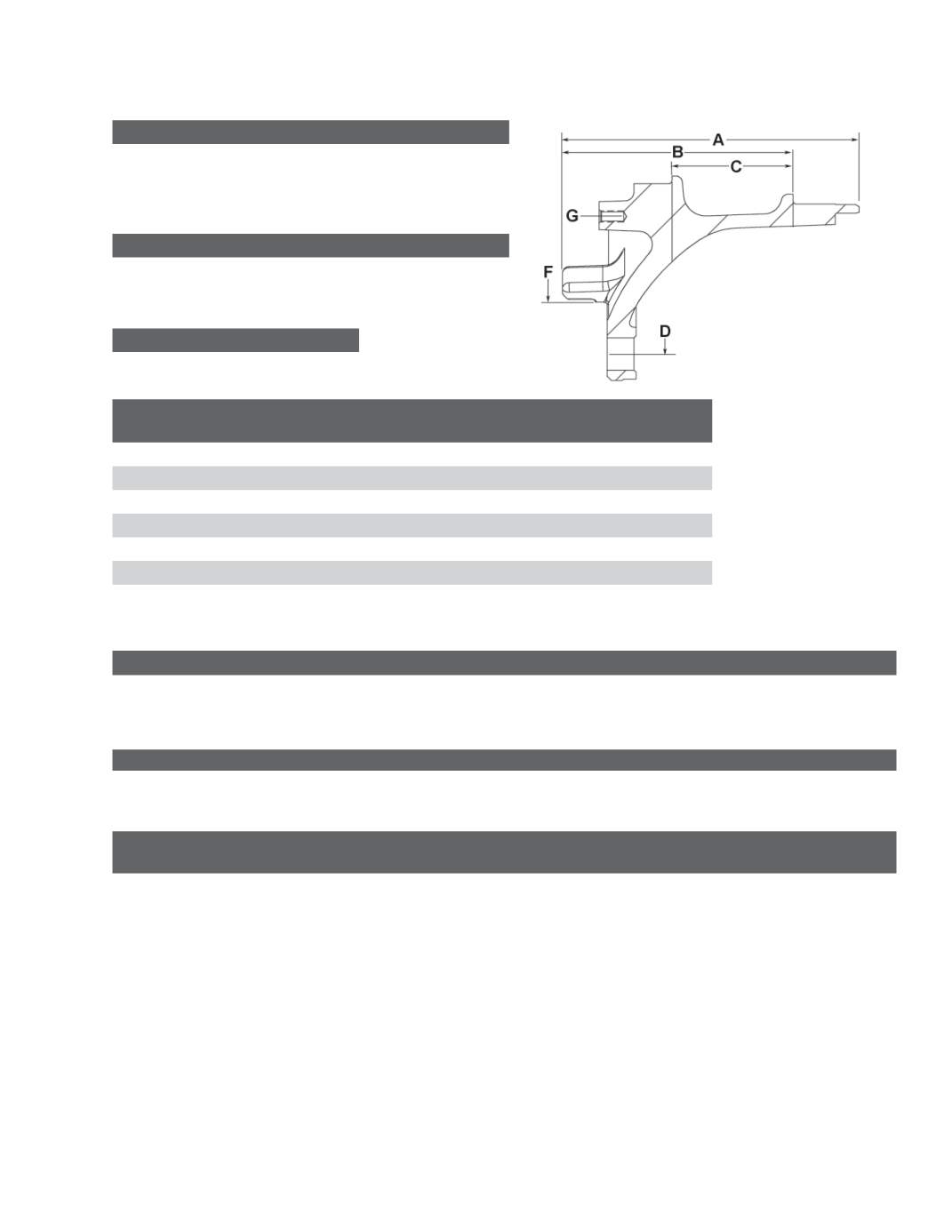

DRAWING
REFERENCE
ITEM
DIMENSION
A
Overall Length
7.424”
B
Outer Hub Cap Face To Inner Bearing Cup Seat
4.464”
C
Distance Between Cups
3.125”
D
Bolt Circle Diameter
8.858”
E
Wheel Stud Quantity
10
F
Pilot Diameter
6.691”
G
Drive Flange Hole Pattern
4, 5/16”-18; 3.62” B.C.
HUB PILOTED - Hub and Rotor Assemblies
HUB PART NUMBER
WHEEL TYPE
WHEEL STUD NUMBER ABS RING NUMBER
ROTOR NUMBER
ROTOR O.D.
17-16010-1000
09-002216
09-002139
23-123522-002
15.56
WHEEL STUDS USED WITH HUB IN ASSEMBLIES
WHEEL STUD NO.
THREAD TYPE SIZE
STYLE
WHEEL TYPE
USE WITH DRUM TYPE
09-002216
Serrated M14 x 1.5
Hub Piloted
ROTORS USED WITH HUB IN ASSEMBLIES
BOLT HOLES
ROTOR PART NO.
OUTSIDE DIA.
OVERALL DEPTH BOLT CIRCLE DIA.
DIAMETER
NUMBER
PILOT DIA.
23-123522-002
15.560
4.880
6.430
.50
10
5.120
