FRONT AXLE HUBS
FOR AXLE MODELS: Dana Spicer I-160, I-180, I-200, I-220
Eaton EFA-18F3, EFA-20T2, EFA-22T2/T5, EFA-24T2/T5
Meritor FG-942, FL-931, FL-941, FL-943, FL-951
HUB NO.
DESCRIPTION
TYPE
05-16026-XXX
Front Axle Hub
Outboard Drum
10 Hole
Serrated Studs
INNER BEARING
CUP
CONE
BOLT CIRCLE
6420
6461A
11.25”
OUTER BEARING
CUP
CONE
552A
555S

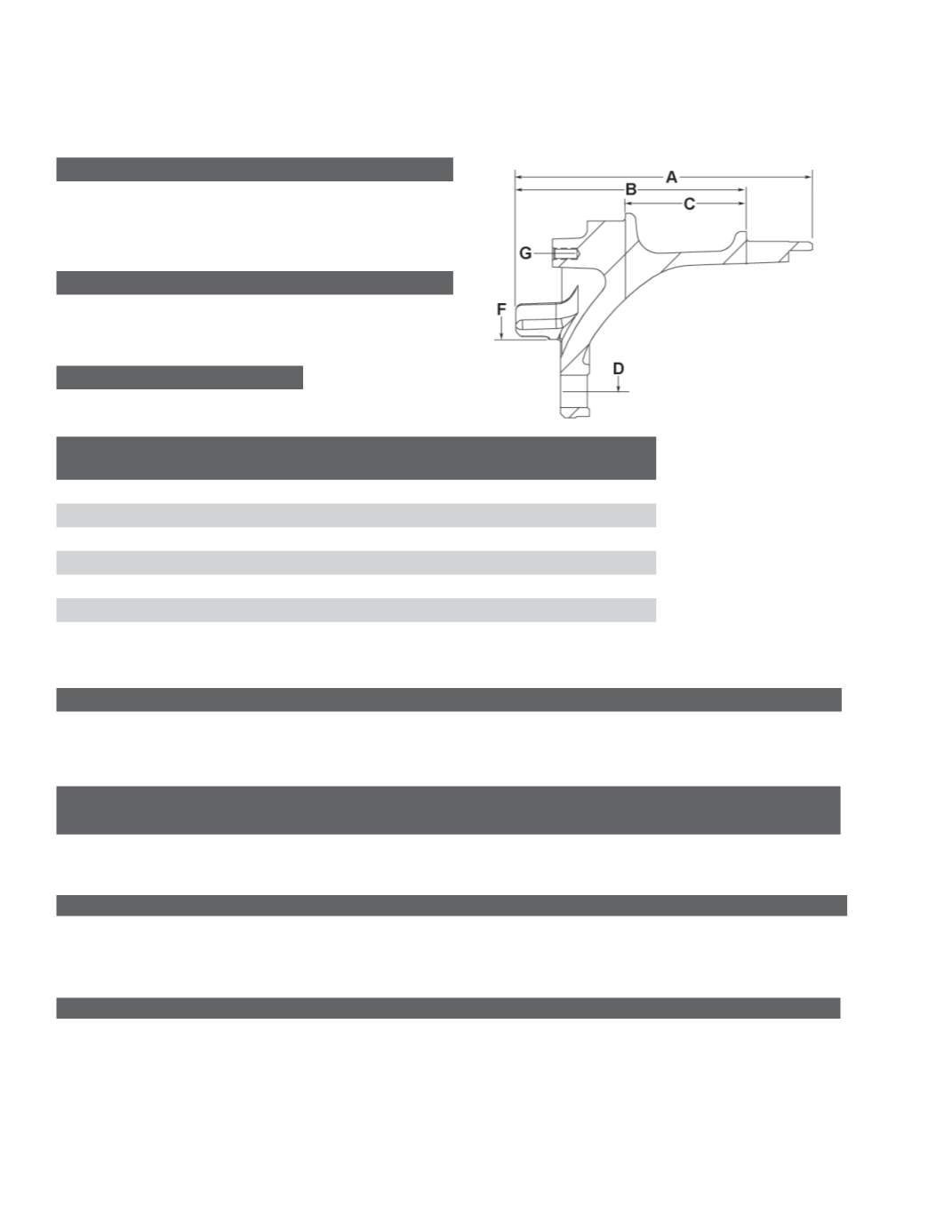

DRAWING
REFERENCE
ITEM
DIMENSION
A
Overall Length
7.76”
B
Outer Hub Cap Face To Inner Bearing Cup Seat
4.84”
C
Distance Between Cups
3.031”
D
Bolt Circle Diameter
11.25”
E
Wheel Stud Quantity
10
F
Pilot Diameter
8.78”
G
Drive Flange Hole Pattern
6, 5/16”-18; 5.50” B.C.
HUB PILOTED - Hub Assemblies without Drum or Rotor
HUB PART NUMBER
WHEEL TYPE
DRUM TYPE
WHEEL STUD
ABS RING NUMBER
05-1603-3098-P72
09-001727
09-002206
HUB PILOTED - Hub and Drum Assemblies
HUB PART NUMBER WHEEL TYPE
DRUM
TYPE WHEEL STUD NUMBER
ABS RING
NUMBER DRUM SIZE DRUM NUMBER
DRUM
POSITION
15-16026-1002MTB
Steel, Disc
Cast
09-001727
16.5 x 6 85-123657-002 Outboard
WHEEL STUDS USED WITH HUB IN ASSEMBLIES
WHEEL STUD NO.
THREAD TYPE SIZE
STYLE
WHEEL TYPE
USE WITH DRUM TYPE
09-001727
Serrated M22 x 1.5
Hub Piloted
Aluminum Wheel
X30
09-001728
Serrated M22 x 1.5
Hub Piloted
Aluminum, Steel
Cast
DRUMS USED WITH HUB IN ASSEMBLIES
DRUM NO.
DRUM TYPE
BRAKE SIZE
OVERALL DEPTH
PILOT DIAMETER
85-123657-002
Cast MTB
16.50” x 6.00”
9.88”
8.78”
