HARNESS SYSTEMS
HAR
6
4
6
12
5
10 987
3
11
13 2
1
14
15
8
4
8
14
5
13 12 11 10 9
3
2
1
7
6
16
15
28 Foot 50 Series
Super System Harness
Part Number
Qty Description
1 50733-0396 1 7 Conductor Main Cable - 33’
2 50208-0060 1 R.H. Stop/Turn/Tail & Side Marker Harness - 60”
3 50209-0060 1 L.H. Stop/Turn/Tail & Side Marker Harness - 60”
4 50301-0216 1 Identification Lamp Harness - 216”
5 50307
1 License Lamp Harness - 36”
6 50309
2 Front Marker/Clearance Lamp Harness - 168”
7 50400
1 Junction Box Kit
8 50840
2 3/8” I.D. Compression Fitting
9 50841
2 1/2” I.D. Compression Fitting
10 50842
2 3/4” I.D. Compression Fitting
11 50706-0072 1 7 Conductor Main Cable - 6’
12 *
1 7 Way Receptacle - Front
13 *
1 7 Way Receptacle - Rear
14 52100-0396 1 ABS Power Jumper Harness
15 5220
1 ABS Fault Lamp Jumper Harness

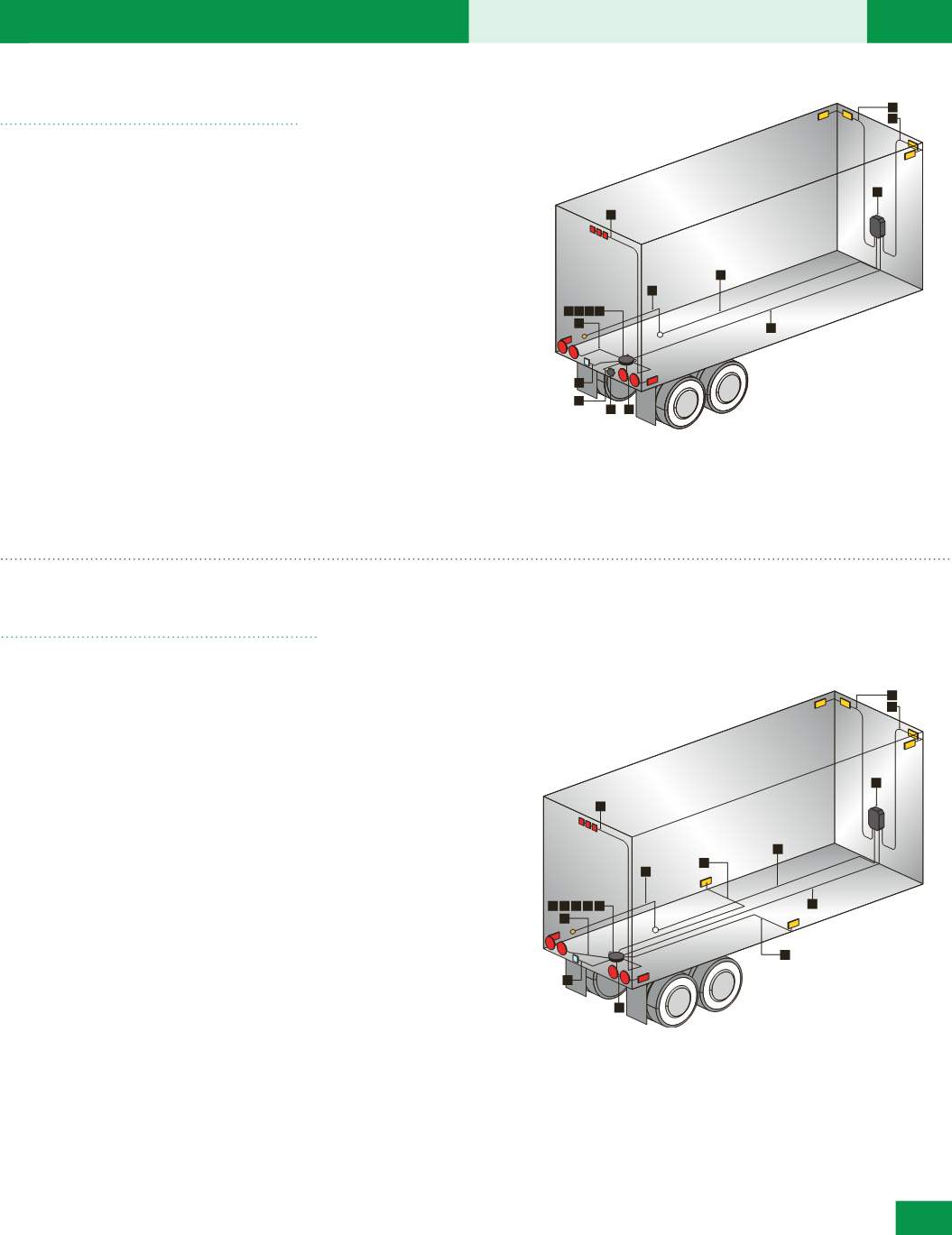

The sketch illustrates a typical 28’ dry van using Truck-Lite’s lighting and
harness system. The list demonstrates how each harness system can be used
to meet a 28’ application. The part numbers listed are recommendations and
substitutions may be made to customize each system to your exact needs.
Part Number
Qty Description
1 50751-0612 1 7 Conductor Main Cable - 51’
2 50208-0060 1 R.H. Stop/Turn/Tail & Side Marker Harness - 60”
3 50209-0060 1 L.H. Stop/Turn/Tail & Side Marker Harness - 60”
4 50301-0216 1 Identification Lamp Harness - 216”
5 50307
1 License Lamp Harness - 36”
6 50344-0336 1 R.H. Center Turn & Marker/ Clearance Lamp
Harness - 336”
7 50345-0336 1 L.H. Center Turn & Marker/ Clearance Lamp
Harness - 336”
8 50309
2 Front Marker/Clearance Lamp Harness - 168”
9 50400
1 Junction Box Kit
10 50840
2 3/8” Compression Fitting
11 50841
2 1/2” Compression Fitting
12 50842
1 3/4” Compression Fitting
13 50846
2 Oval Hole Compression Fitting
14 *
1 7 Way Receptacle
15 52100
1 ABS Power Jumper Harness
16 52200
1 ABS Fault Lamp Jumper Harness
48 Foot 50 Series Super
System Harness
The sketch illustrates a typical 48’ dry van using Truck-Lite’s lighting and
harness system. The list demonstrates how each harness system can be used
to meet a 48’ application. The part numbers listed are recommendations and
substitutions may be made to customize each system to your exact needs.
