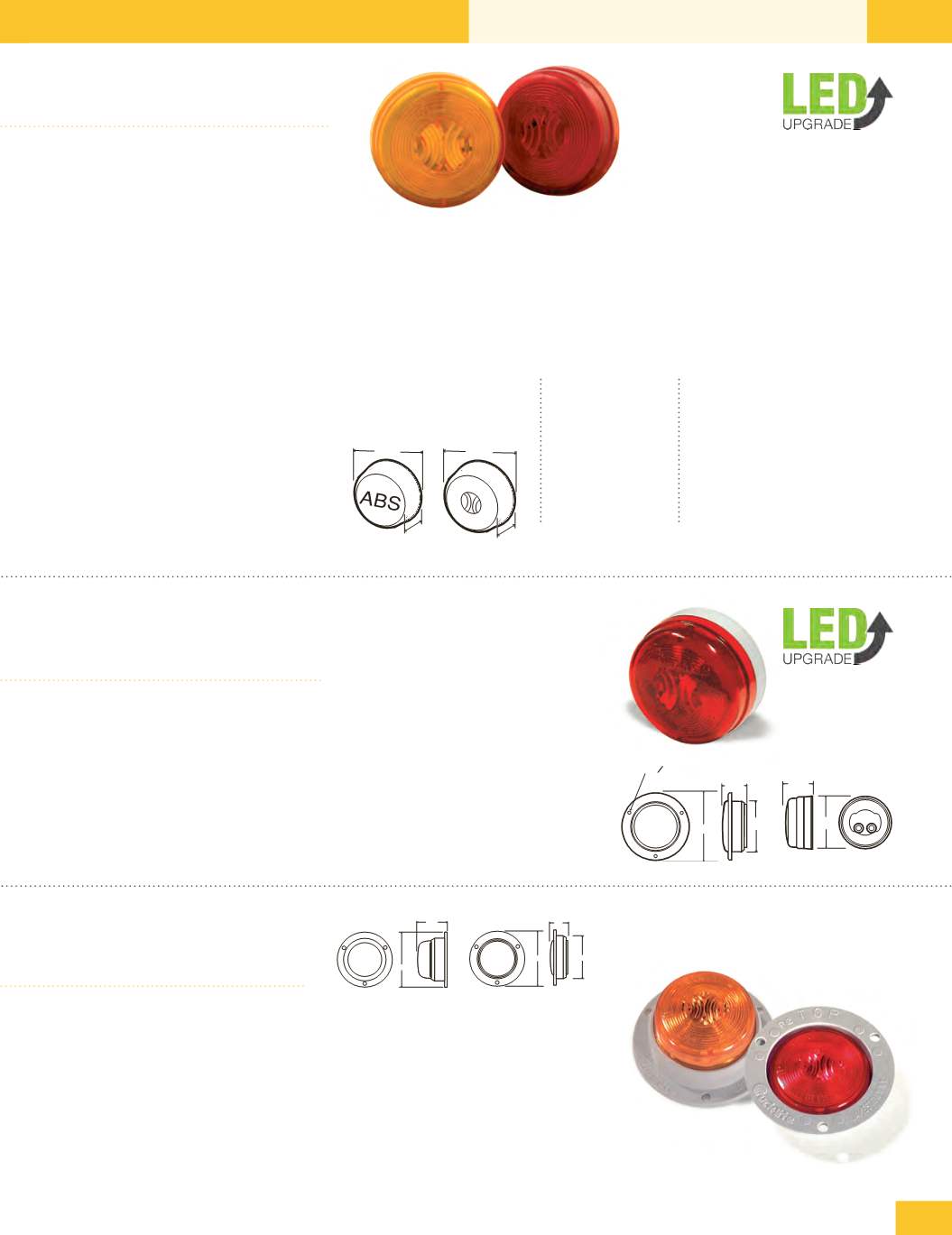

Truck-Lite Full Line Product Catalog
Customer Service: 800-562-5012 / Technical Support: 888-562-5012
65
M/C
2.00
.690
2.00
.690
See pages 62-64
30
®
Series Products
2” Sealed
Material:
• Polycarbonate lens & housing
• PVC grommet
• 16 gauge wire
Light Source:
• 15,000 hr rated 12v bulb life
• 12v designed at 14v, 0.33 amp, 2 cp
• 24v designed at 28v, 0.17 amp, 3 cp
Kit Components:
30503R/Y lamp kits:
1 - 30200R/Y lamp
1 - 30700 grommet
1 - 94902 plug
Recommended Accessories:
• Mounting: Pages 253-255
• Plugs: Pages 225-228
FMVSS:
• P2,P3,PC
• Wabash & Monon replacement
• “ABS” version complies with FMVSS 108 requirement for ABS malfunction
indicator lamp on trailer & ABS braking systems
• Standard PL-10 connections
• Lamp designed for PC requirements on a 45˚ angle in mounting devices #30720,
#00801, #00803, #00804 or surface mount flange
• Replaces Signal-Stat 1030 series
Grommet Kits
30503R Red, grommet kit
30503Y Yellow, grommet kit
12v Lamps
30200R Red
30200Y Yellow
30200B Blue
30200G Green
12v Lamp w/ABS logo
30257Y Yellow, vertical
30230Y Yellow, horizontal
24v Lamps
30206R Red
30206Y Yellow
30206B Blue
30230Y
1.01
2.04
2.930
1.150
3X0.195dia
2.300
See pages 62-64
30
®
Series
PC Rated Products
2” Sealed
Material:
• Polycarbonate lens & housing
Light Source:
• 15,000 hr rated 12v bulb life
• 12V designed at 14v, .33 amp, 2 cp
Recommended Accessories:
•Mounting: Pages 253-255
• Plugs: Pages 225-228
FMVSS:
• P2,PC2
• Innovative design allows one
lamp ability to function as two
• Standard PL-10 connection
• Lamp designed for PC
requirement on a 45˚ angle in
grommet mounting devices
#30700, #30702, #30704
30204R Red
30225R Red, lamp & flange
30204Y Yellow
30225Y Yellow, lamp & flange
30204R
2.930
1.260
2.930
.830
2.300
30
®
Series
Flange Products
2” Sealed
Material:
• Polycarbonate lens & flange
• 16 gauge wire
Light Source:
• 15,000 hr rated 12v bulb life
• Designed at 14v, 0.33 amp, 2 cp
Recommended Accessories:
• 97080 flange gasket
• Plugs: Pages 209-212
FMVSS:
• P2,PC2
• Flanges are permanently affixed to lamp
• 12 volt 15,000 hr rated bulb
• Flush mount is not suitable for
PC requirements
30221R Red, flush mount
30221Y Yellow, flush mount
30222R Red, surface mount
30222Y Yellow, surface mount
Surface Mount
2.610 bolt hole circle
Flush Mount
.195 screw hole diameter
30222Y
30221R
