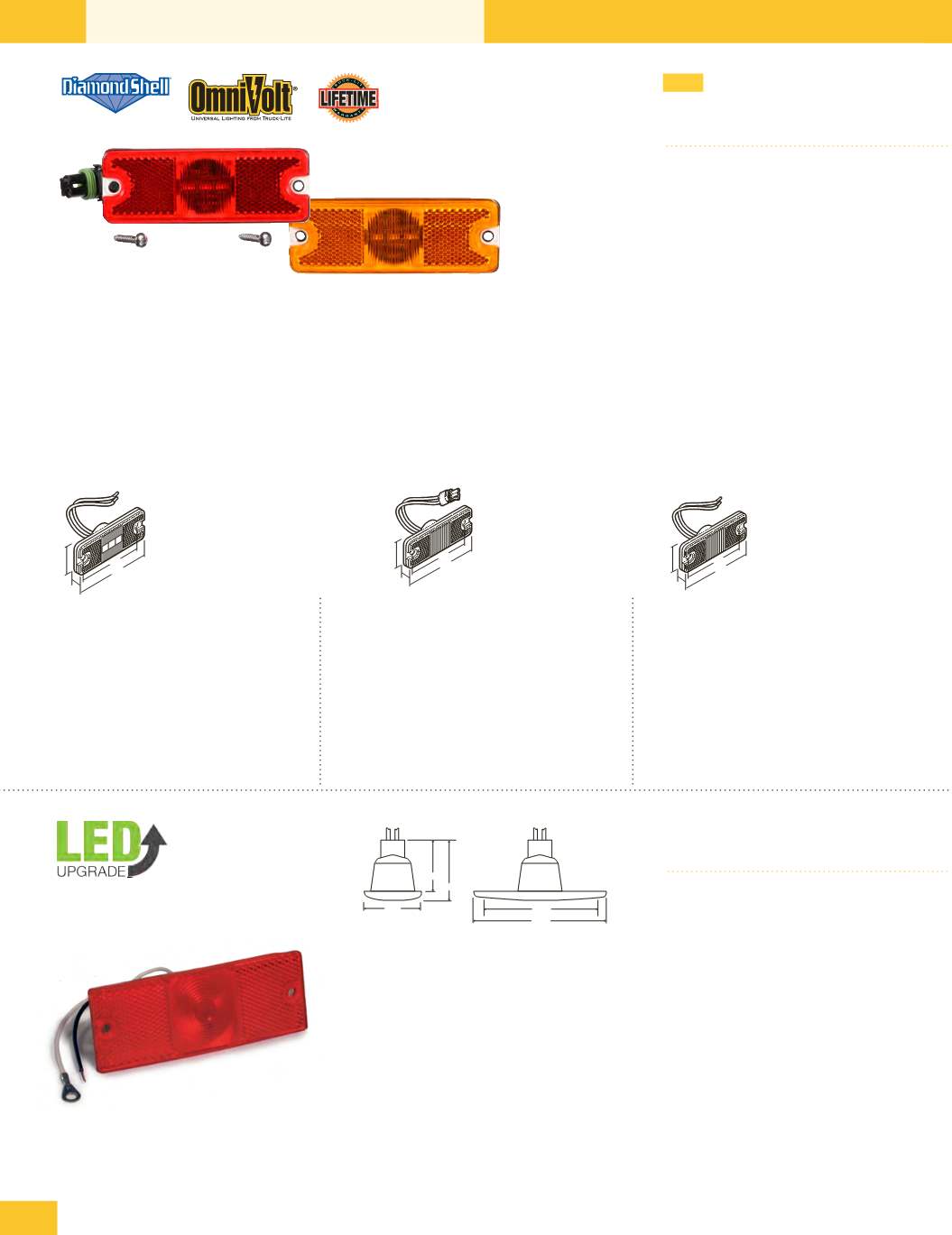

66
Note: Recommended for side marker
& reflector use with no roll back
mounted vertically or horizontally
4.50
1.63
1.00
4.00
4.50
1.63
1.00
4.00
4.50
1.63
1.00
4.00
LED
18
®
Series
Sealed
3 Diode Pattern
Material:
• Acrylic lens & housing
• 18 gauge wire
Light Source:
• Light Emitting Diodes (LEDs)
• 12v designed at 13.5v,
0.05 amp
• 10-30v designed at 13.5v &
28v, 0.05 amp
FMVSS:
• A,P2
• 18011R - ECE,R3,R7
• 18011Y - ECE,R3,R91
• Uses standard mounting holes & accessories
• Draws less current, allowing more power for other vehicle requirements
• OmniVolt® versions also meet ECE standards
• Not suitable for PC requirements
• OmniVolt versions address increasing vehicle power demands by
operating equally in electrical systems ranging from 10 to 30 volts
• Meets SAE J592e standards
• Meets SAE J594f when mounted with no rollout or rollback
18070R
18070Y
LED Lamp w/Blunt Cut
18050R Red, diamond shell
18050Y Yellow, diamond shell
18011R Red, 10-30v
18011Y Yellow, 10-30v
18011C Clear, 12-30v
1.375 dia.
mounting hole
LED Lamp w/Packard
#12015792 (male)
18070R Red, diamond shell
18070Y Yellow, diamond shell
LED Lamp w/Packard
#12010973 (female)
18060R Red, diamond shell
18060Y Yellow, diamond shell
LED Lamp
w/Blunt Cut
18090R Red, diamond shell
18090Y Yellow, diamond
shell
1.375 dia.
mounting hole
1.375 dia.
mounting hole
Note:
Recommended for horizontal
applications requiring 0-20˚ roll back (yel-
low) or 0-35˚ roll back (red)
Note: Recommended for horizontal
applications requiring 0-20˚
roll back (yellow) or 0-35˚ roll
back (red)
See Above
18
®
Series
Bulb Replaceable
Material:
• Acrylic lens
• ABS housing
• Rubber mounting gasket
• 18 gauge wire
Light Source:
• Bulb: #194 wedge base
Kit Components:
18300R/Y kits:
1 - 99012R/Y lens/housing
1 - 94940 plug
1 - 97927 mounting gasket
Replacement Parts:
• 99012R red, lens/housing
• 99012Y yellow, lens/housing
• 97927 mounting gasket
• 94940 plug
FMVSS:
• A,P2
• Replaceable bulb
• Replaces Signal-Stat 1572/1572A
18300R Red, kit
18300Y Yellow, kit
1.406 diameter hole for socket
0.200 screw hole diameter
4.000
4.500
1.625
1.750
2.125
See Page 2
