CAMSHAFTS

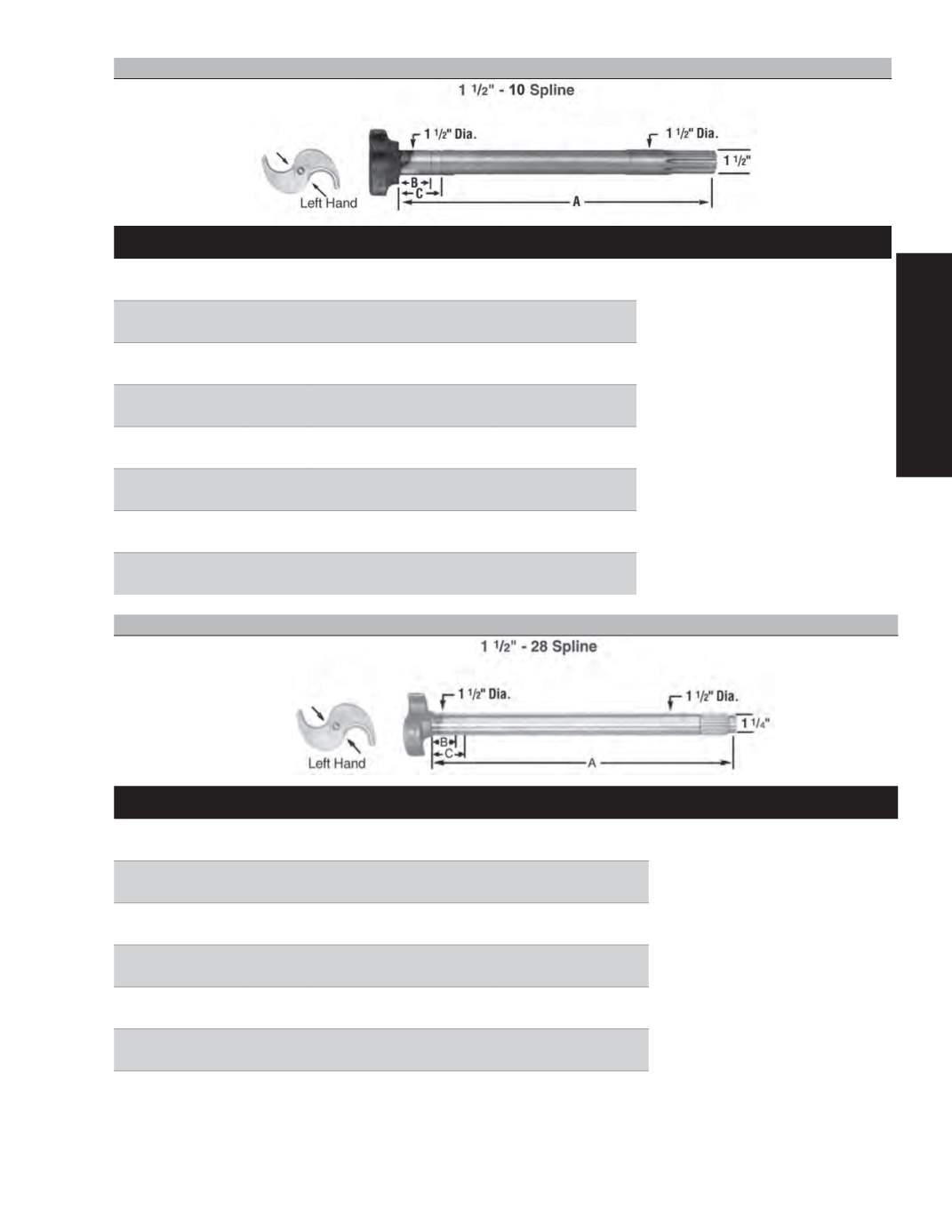

BRAKE CAMSHAFTS — TRAILER AXLE
FOR SPICER TRAILER AXLES WITH 16-1/2” “XL” “XTRALIFE” BRAKES
EUCLID NO.
HEAD END
NOMINAL
HEAD DIM.
REPLACES
A
B
C
CAMSHAFT
REPAIR KIT
BRAKE
REPAIR KIT GENERAL INFORMATION
E-5516
LH
1-1/8”
Dana/Spicer M16WKL10-175
17-3/8” 1-5/8” 2-7/32”
E-5515 (XL)
E-2769HD
(Standard
Q)
E-2287
These cams are
“extended life” versions
of this manufacturer’s
“standard version”.
If retrofitting from
“standard” to “extended
life” camshafts, Euclid
strongly recommends
replacing both cams
on a single axle or all
cams on tandem axles
to promote a balanced
brake condition.
E-5517
RH
Dana/Spicer M16WKR10-175
E-9739
LH
1-1/8”
Dana/Spicer M16WKL10-196
19-1/2” 1-5/8” 2-7/32”
E-9740
RH
Dana/Spicer M16WKR10-196
E-5518
LH
1-1/8”
Dana/Spicer M16WKL10-205
20-3/8” 1-5/8” 2-7/32”
E-5519
RH
Dana/Spicer M16WKR10-205
E-6101
LH
1-1/8”
Dana/Spicer M16WKL10-231
22-7/8” 1-5/8” 2-7/32”
E-6102
RH
Dana/Spicer M16WKR10-231
E-5520
LH
1-1/8”
Dana/Spicer M16WKL10-236
23-1/2” 1-5/8” 2-7/32”
E-5521
RH
Dana/Spicer M16WKR10-236
E-9727
LH
1-1/8”
Dana/Spicer M16WKL10-242
24” 1-5/8” 2-7/32”
E-9728
RH
Dana/Spicer M16WKR10-242
E-6103
LH
1-1/8”
Dana/Spicer M16WKL10-245
24-3/8” 1-5/8” 2-7/32”
E-6104
RH
Dana/Spicer M16WKR10-245
E-9741
LH
1-1/8”
Dana/Spicer M16WKL10-264
26-1/4” 1-5/8” 2-7/32”
E-9742
RH
Dana/Spicer M16WKR10-264
FOR SPICER TRAILER AXLES WITH 16-1/2” “XL” “XTRALIFE” BRAKES
EUCLID NO.
HEAD END
NOMINAL
HEAD DIM.
REPLACES
A
B
C
CAMSHAFT
REPAIR KIT
BRAKE
REPAIR KIT GENERAL INFORMATION
E-9096
LH
1-1/8”
Dana/Spicer M16WKL20-173
17-3/16” 1-5/8” 2-7/32”
E-5515 (XL)
E-2769HD
(Standard
Q)
E-2287
These cams are
“extended life”
versions of this
manufacturer’s
“standard version”.
If retrofitting from
“standard” to
“extended life”
camshafts, Euclid
strongly recommends
replacing both cams
on a single axle or all
cams on tandem axles
to promote a balanced
brake condition.
E-9097
RH
Dana/Spicer M16WKR20-173
E-5522
LH
1-1/8”
Dana/Spicer M16WKL20-175
17-7/16” 1-5/8” 2-7/32”
E-5523
RH
Dana/Spicer M16WKR20-175
E-5524
LH
1-1/8”
Dana/Spicer M16WKL20-205
20-7/16” 1-5/8” 2-7/32”
E-5525
RH
Dana/Spicer M16WKR20-205
E-9098
LH
1-1/8”
Dana/Spicer M16WKL20-231
22-15/16” 1-5/8” 2-7/32”
E-9099
RH
Dana/Spicer M16WKR20-231
E-5526
LH
1-1/8”
Dana/Spicer M16WKL20-236
23-9/16” 1-5/8” 2-7/32”
E-5527
RH
Dana/Spicer M16WKR20-236
E-9100
LH
1-1/8”
Dana/Spicer M16WKL20-242
24-1/16” 1-5/8” 2-7/32”
E-9101
RH
Dana/Spicer M16WKR20-242
E-9729
LH
1-1/8”
Dana/Spicer M16WKL20-271
26-15/16” 1-5/8” 2-7/32”
E-9730
RH
Dana/Spicer M16WKR20-271
All Euclid Cam Lengths are measured from under Cam Head to beginning of Lock Ring Groove.
