CAMSHAFTS

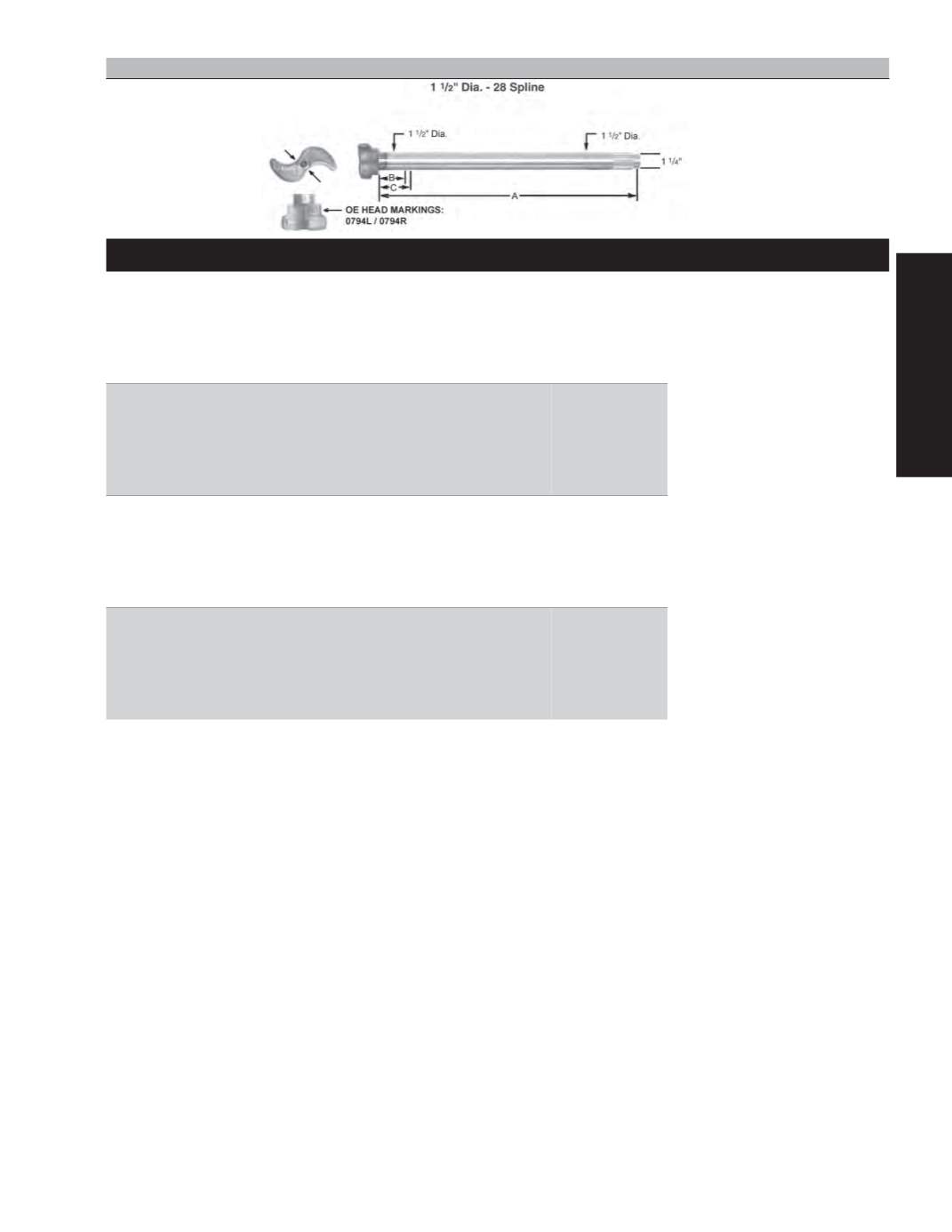

BRAKE CAMSHAFTS — TRAILER AXLE
FOR SPICER TRAILER AXLES WITH 12-1/4” BRAKES - “NEW” HEAD DESIGN REPLACES “FAST-RISE” CAMSHAFT HEAD STYLE
EUCLID NO.
HEAD END
NOMINAL
HEAD DIM.
REPLACES
A
B
C
CAMSHAFT
REPAIR KIT
GENERAL INFORMATION
E-9753
LH
11/16”
Dana/Spicer M12WKL20-205
20-7/16” 2-7/32” 2-21/32”
E-2469
(Nylon
spider
bushing)
E-5307
(Bronze
spider
bushing)
Spicer has changed the head
design of these camshafts.
The new heads are marked:
“0794L” and “0794R”. Spicer
did not change their part
numbers for these cams, so
pay attention to the head
markings! WARNING: These
camshafts are for use with
fabricated brakes shoes
only! DO NOT use these new
camshafts with cast brake
shoe or fabricated closed
roller-end brake shoes.
Euclid fabricated open roller
end brake shoe numbers
are: E-2393A, E-2394A, and
E-5303A. WARNING: E-586,
1-1/2” diameter, Rollers
must be used with this new
head design. E-586 rollers
are now available in Brake
Repair Kits E-9281, E-9282
and E-9283. WARNING: These
camshafts should not be
used in conjunction with old
“Fast-Rise” camshafts on
the same axle. The rate of
brake application is different
between the two head designs.
E-9754
RH
Dana/Spicer M12WKR20-205
E-9755
LH
11/16”
Dana/Spicer M12WKL20-214
21-5/16” 2-7/32” 2-21/32”
E-9756
RH
Dana/Spicer M12WKR20-214
E-9757
LH
11/16”
Dana/Spicer M12WKL20-222
22-1/16” 2-7/32” 2-21/32”
E-9758
RH
Dana/Spicer M12WKR20-222
E-9759
LH
11/16”
Dana/Spicer M12WKL20-233
23-3/16”
2-7/32” 2-21/32”
E-9760
RH
Dana/Spicer M12WKR20-233
All Euclid Cam Lengths are measured from under Cam Head to beginning of Lock Ring Groove.
