CAMSHAFTS
BRAKE CAMSHAFTS — TRAILER AXLE

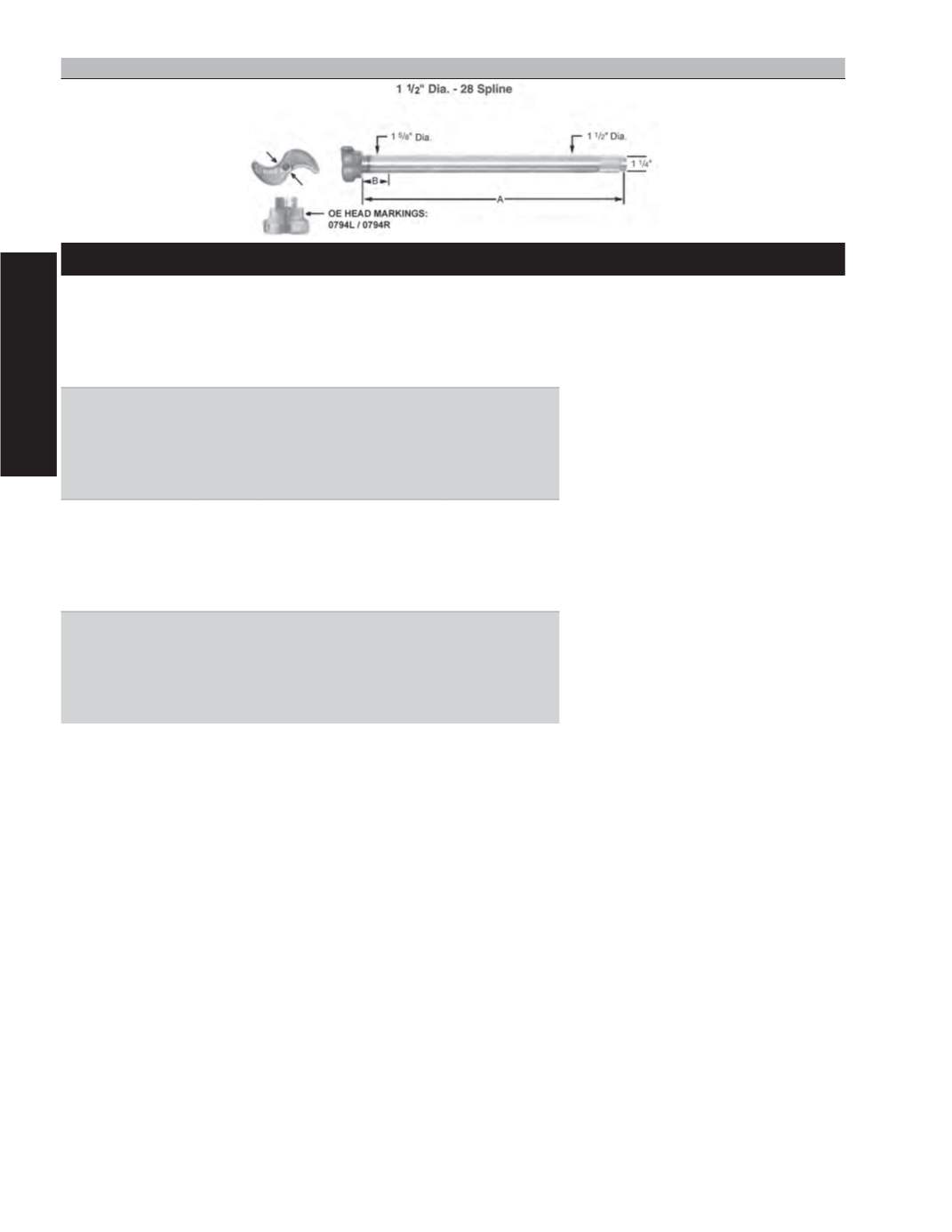

FOR SPICER TRAILER AXLES WITH 12-1/4” BRAKES - “NEW” HEAD DESIGN REPLACES “FAST-RISE” CAMSHAFT HEAD STYLE
EUCLID NO.
HEAD END
NOMINAL
HEAD DIM.
REPLACES
A
B
CAMSHAFT
REPAIR KIT
GENERAL INFORMATION
E-10901
LH
11/16”
Dana/Spicer M12WKL25-206
20-9/16” 2-7/32”
E-9790A
Spicer has changed the head design of
these camshafts. The new heads are
marked: “0794L” and “0794R”. Spicer
did not change their part numbers for
these cams, so pay attention to the head
markings! WARNING: These camshafts
are for use with fabricated brakes shoes
only! DO NOT use these camshafts with
cast brake shoe or fabricated closed
roller-end brake shoes. Euclid fabricated
open roller end brake shoe numbers are:
E-2393A and E-5303A. WARNING: E-586,
1-1/2” diameter, Rollers must be used
with this head design. E-586 rollers
are now available in Brake Repair Kits
E-9281, E-9282 and E-9283. WARNING:
These camshafts should not be used in
conjunction with old “Fast-Rise” camshafts
on the same axle. The rate of brake
application is different between the two
head designs.
E-10902
RH
Dana/Spicer M12WKR25-206
E-10903
LH
11/16”
Dana/Spicer M12WKL25-214
21-5/16” 2-7/32”
E-10904
RH
Dana/Spicer M12WKR25-214
E-10905
LH
11/16”
Dana/Spicer M12WKL25-233
23-3/16” 2-7/32”
E-10906
RH
Dana/Spicer M12WKR25-233
E-10907
LH
11/16”
Dana/Spicer M12WKL25-241
23-15/16”
2-7/32”
E-10908
RH
Dana/Spicer M12WKR25-241
All Euclid Cam Lengths are measured from under Cam Head to beginning of Lock Ring Groove.
