CAMSHAFTS
BRAKE CAMSHAFTS — TRAILER AXLE

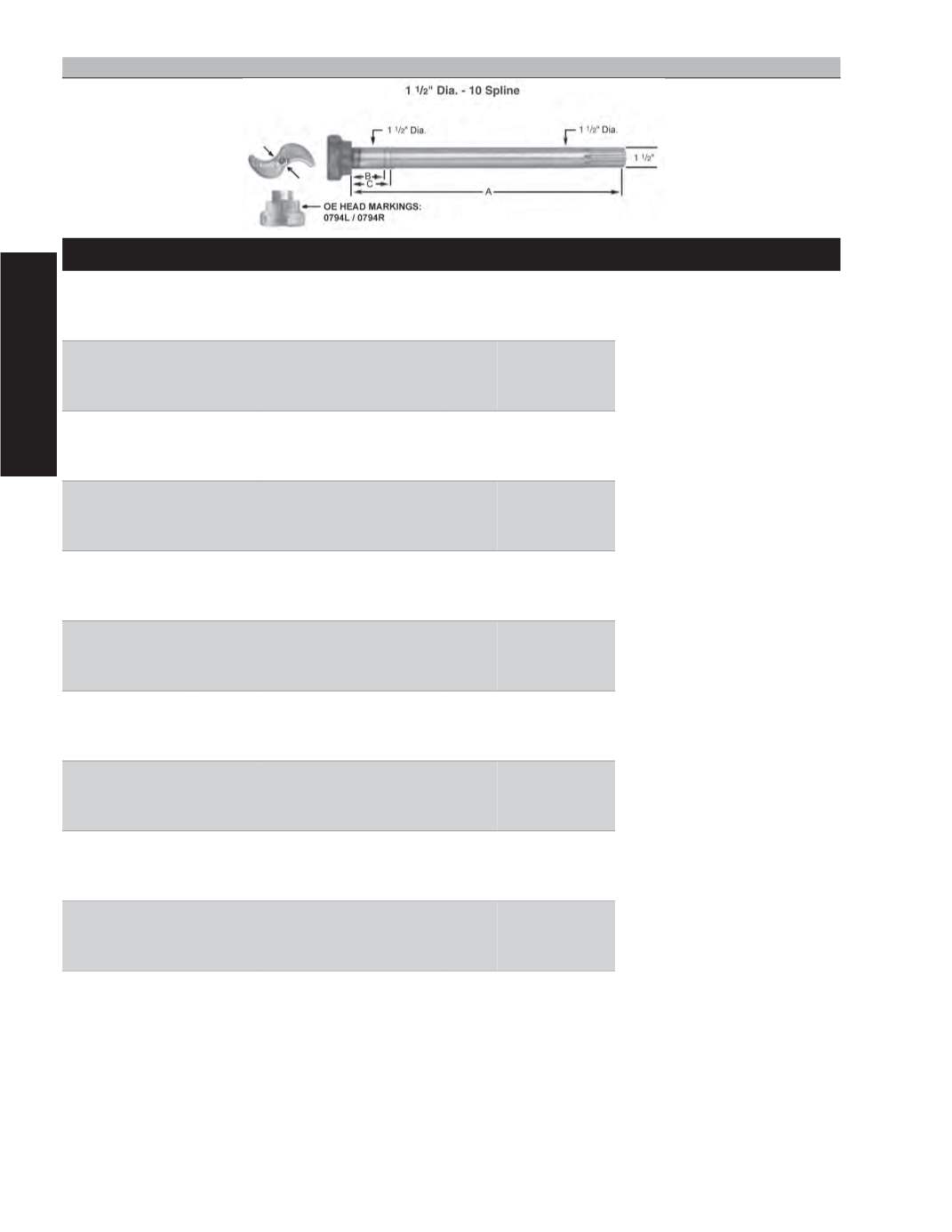

FOR SPICER TRAILER AXLES WITH 12-1/4” BRAKES - “NEW” HEAD DESIGN REPLACES “FAST-RISE” CAMSHAFT HEAD STYLE
EUCLID NO.
HEAD END
NOMINAL
HEAD DIM.
REPLACES
A
B
C
CAMSHAFT
REPAIR KIT
GENERAL INFORMATION
E-9263
LH
11/16”
Dana/Spicer M12WKL10-163
16-1/8” 2-7/32” 2-21/32”
E-2469
(Nylon
spider
bushing)
E-5307
(Bronze
spider
bushing)
Spicer has changed the head
design of these camshafts.
The new heads are marked:
“0794L” and “0794R”. Spicer
did not change their part
numbers for these cams, so
pay attention to the head
markings! WARNING: These
camshafts are for use with
fabricated brakes shoes
only! DO NOT use these new
camshafts with cast brake
shoe or fabricated closed
roller-end brake shoes. Euclid
fabricated open roller end
brake shoe numbers are:
E-2393A, E-2394A, and
E-5303A. WARNING:
E-586, 1-1/2” diameter, Rollers
must be used with this new
head design. E-586 rollers are
now available in Brake Repair
Kits E-9281, E-9282 and
E-9283. WARNING: These
camshafts should not be
used in conjunction with old
“Fast-Rise” camshafts on
the same axle. The rate of
brake application is different
between the two head designs.
E-9264
RH
Dana/Spicer M12WKR10-163
E-9751
LH
11/16”
Dana/Spicer M12WKL10-175
17-3/8” 2-7/32” 2-21/32”
E-9752
RH
Dana/Spicer M12WKR10-175
E-9749
LH
11/16”
Dana/Spicer M12WKL10-182
18”
2-7/32” 2-21/32”
E-9750
RH
Dana/Spicer M12WKR10-182
E-9265
LH
11/16”
Dana/Spicer M12WKL10-191
18-7/8” 2-7/32” 2-21/32”
E-9266
RH
Dana/Spicer M12WKR10-191
E-9267
LH
11/16”
Dana/Spicer M12WKL10-206
20-1/2” 2-7/32” 2-21/32”
E-9268
RH
Dana/Spicer M12WKR10-206
E-9269
LH
11/16”
Dana/Spicer M12WKL10-214
21-1/4” 2-7/32” 2-21/32”
E-9270
RH
Dana/Spicer M12WKR10-214
E-9271
LH
11/16”
Dana/Spicer M12WKL10-222
22”
2-7/32” 2-21/32”
E-9272
RH
Dana/Spicer M12WKR10-222
E-9273
LH
11/16”
Dana/Spicer M12WKL10-233
23-1/8” 2-7/32” 2-21/32”
E-9274
RH
Dana/Spicer M12WKR10-233
E-9275
LH
11/16”
Dana/Spicer M12WKL10-236
23-1/2” 2-7/32” 2-21/32”
E-9276
RH
Dana/Spicer M12WKR10-236
E-9277
LH
11/16”
Dana/Spicer M12WKL10-241
23-7/8” 2-7/32” 2-21/32”
E-9278
RH
Dana/Spicer M12WKR10-241
E-9279
LH
11/16”
Dana/Spicer M12WKL10-264
26-1/4”
2-7/32” 2-21/32”
E-9280
RH
Dana/Spicer M12WKR10-264
All Euclid Cam Lengths are measured from under Cam Head to beginning of Lock Ring Groove.
