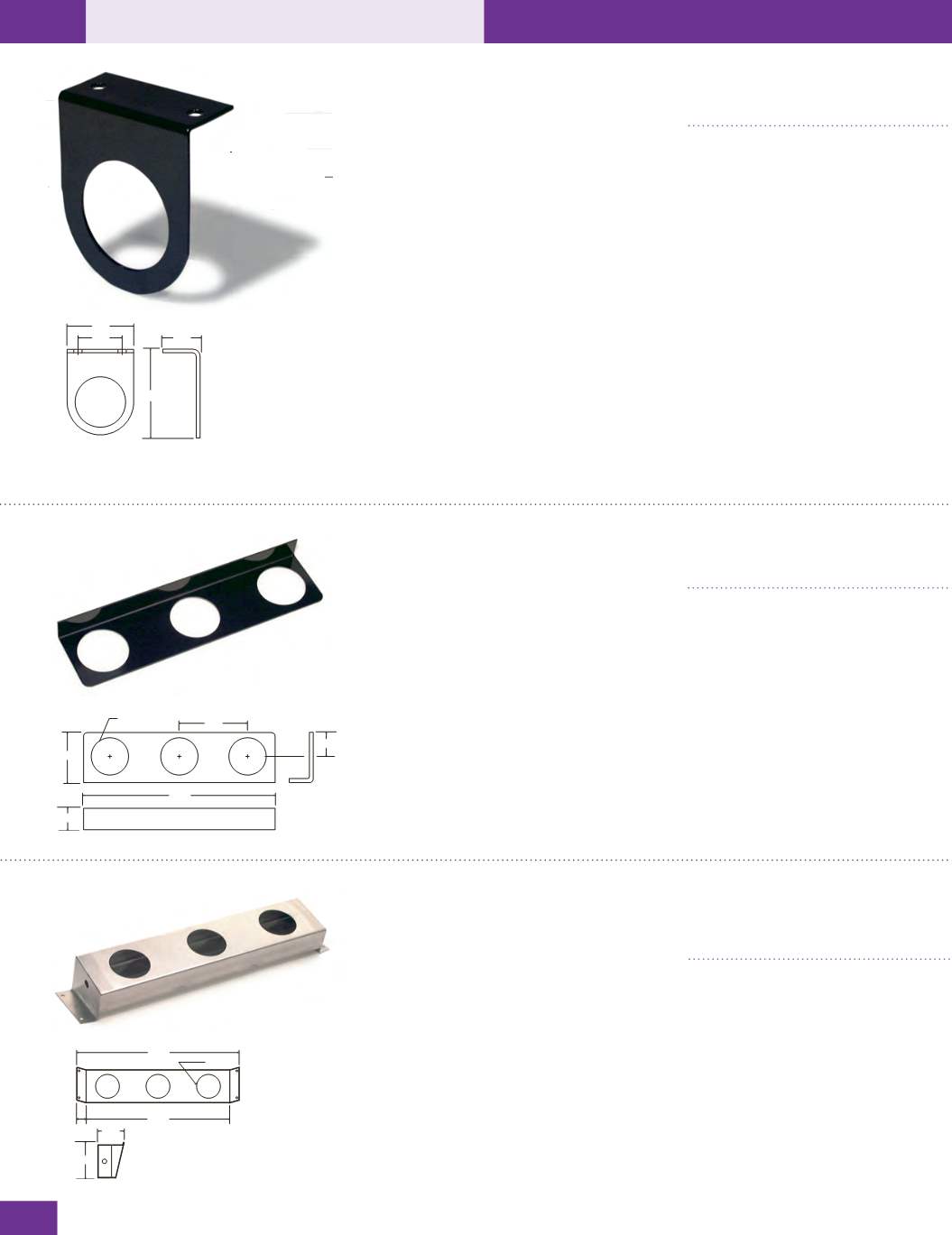

ACC
Mounting Bracket
For 2-1/2” Lamps
Material:
• Steel bracket
• Black epoxy painted heavy gauge steel
• Designed for mounting grommets: #10704
& # 10706
• Bracket is angle cut to fit most tanker
applications
• Designed for mounting grommets
requiring 2.871” hole, #10700, #10701,
#10705, #10713, #10714 & #10708
• Black epoxy painted heavy gauge steel
• 10729 is designed for mounting
grommets: #10700, #10701, #10705,
#10713, #10714 & #10708
• 10730 is designed for mounting
grommets: #10704 & # 10706
16.000
6.000
2.000
1.500
4.000
3.0dia.
3.000
4.810
4.000
1.750
.375 bolt hole diameter
18.000
20.240
2.781Dia.
3.870
1.120
3.120
0.560 wire hole diameter
0.220 screw hole diameter
Mounting Bracket
For 2-1/2” Lamps
Material:
• Steel bracket
Identification
Bracket
For 2-1/2” Lamps
Material:
• Stainless steel bracket
00814
Bracket
10732
Bracket
10729
Bracket w/2.781 hole
10730
Bracket w/3” hole
