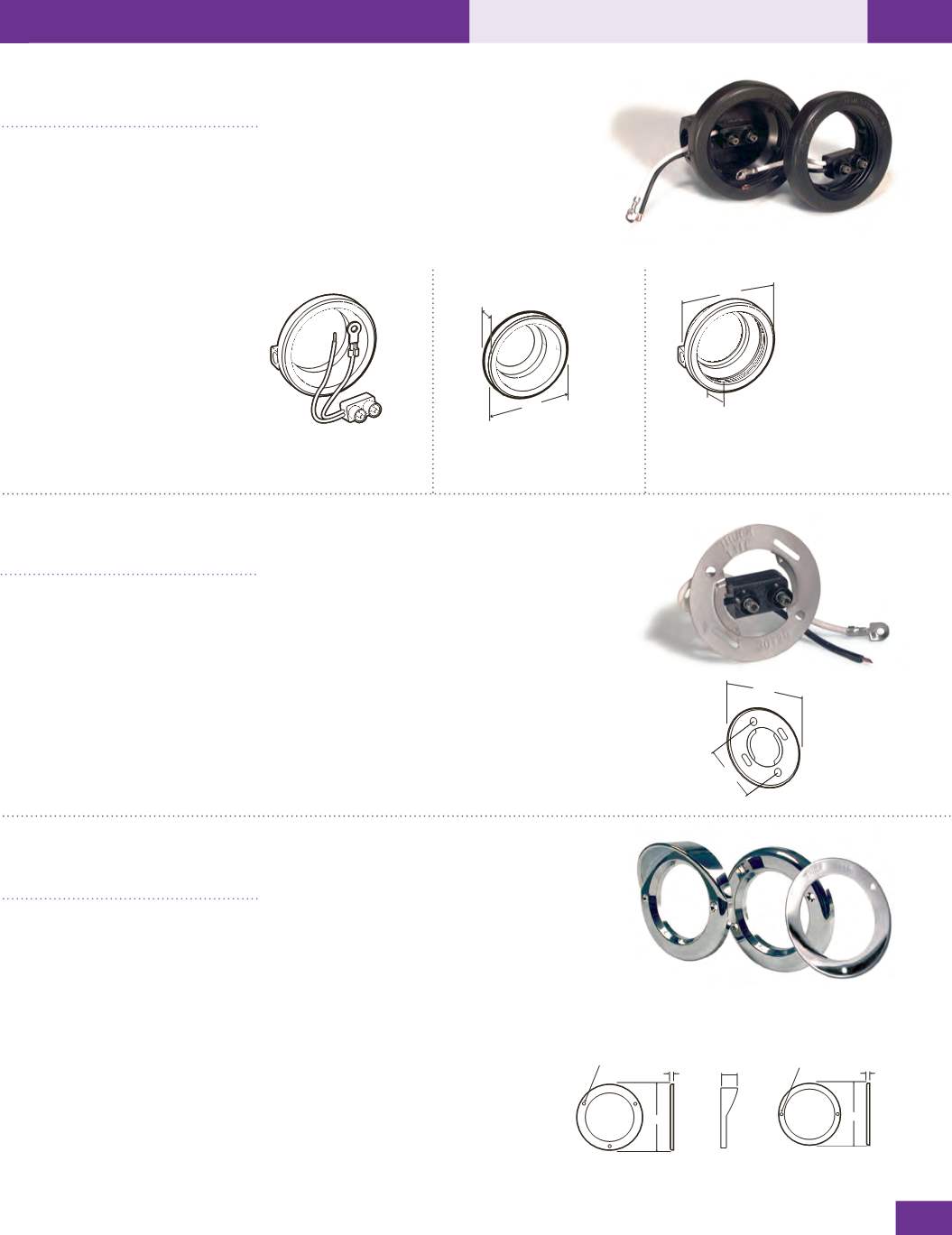

MOUNTING
Customer Service: 800-562-5012 / Technical Support: 888-562-5012
253
ACC
30400
30402 30401
• Flush mounts 2” diameter lamps
• Wide groove for panel thickness up to .250”
• Suitable for PC requirements when using LED
or incandescent PC rated/combination lamps
• Closed back versions recommended for open
installation where splash plate is not used
• Replaces Signal-Stat 9139
Surface Mounts
For 2” Lamps
Material:
• Polycarbonate lens
& housing
• Stainless steel mount
• 16 gauge wire
Kit Components:
30400 kit:
1 – 30720 mount
1 – 94902 plug
• Rust resistant stainless steel mount
• Quick cam-on, cam-off lamp installation
• Meets PC requirements on a 45˚ angle
• Mounts with screws to surface, not included
• Not recommended for Signal-Stat LED lamps
• Replaces Signal-Stat 9396
3.000
.14
.20dia
flange cover
1.165
3.00
.125 dia
visor
Grommet Mounts
For 2” Lamps
Material:
• PVC grommet
• 16 gauge wire
• Thermal plastic rubber (TPR)
Kit Components:
30402 open back kits:
1 - 30700 grommet
1 - 94902 plug
30402 closed back kits:
1 - 30702 grommet
1 - 94902 plug
Grommet Kits
30401
Open back
30402
Closed back
Closed Back Grommets
30702
Black w/.75 dia. exit hole
30704
Black w/.50 dia. exit hole
2.81
.790
Mounting Covers
For 2” Mounts
Material:
• Polished stainless steel
flange cover
• Chrome plated plastic
grommet covers
• Grommet cover designed to enhance
appearance of lamps
• Flange cover offers improved theft
resistance of all incandescent flanged
models & 30251R/Y or 30272R/Y LED model
• Screws required
2.81
.790
Open Back Grommets
30700
Black
30712
30713
30708
2.312 mounting hole
2.00
1.56
3.125
.40
0.146dia
grommet cover
30720
Mount
30400
Mount kit
30001R Red lamp kit
30001Y Yellow lamp kit
30713 Grommet cover
30708 Flange cover
30712 Grommet cover w/visor
30715 Flange cover for PC rated lamps
