Assembly PN
Description
Drum PN
3.34
4.87
7.09
275mm (10.83")
6 Holes 5/16"-18 UNC,
5.50 Bolt Circle
0.44
6.39
SAE "N" Spindle
Inner Bearing Cup / Cone
Outer Bearing Cup / Cone
Ductile Iron 8 stud hub w/ 275mm Dia. Bolt Circle. Uses Outboard Drum - Serrated stud

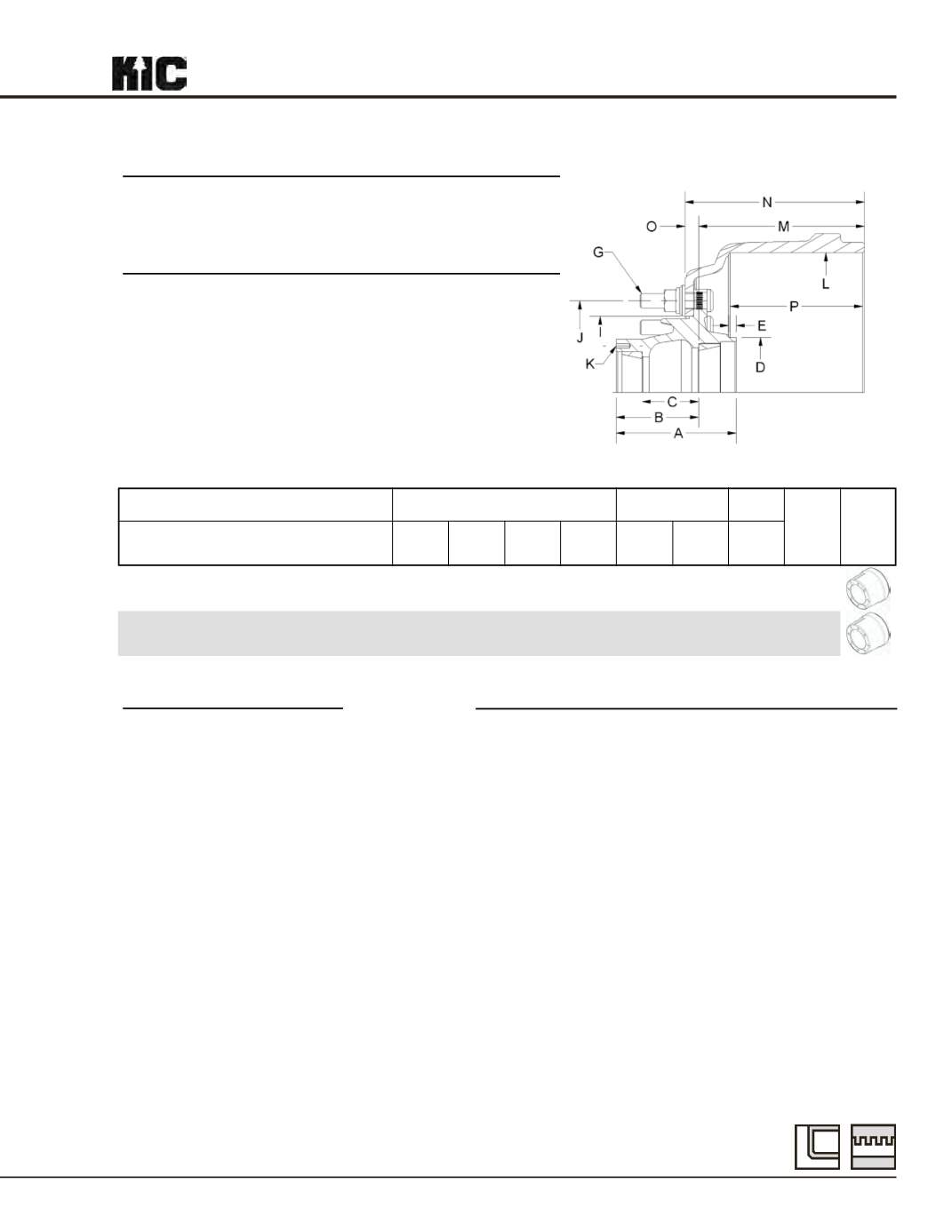

Hub Specifications
A: Hub Overall Length
B: Inner Cup to Mounting Face
C: Distance Between Cups
D: Tone Ring Bore Diameter
E: Tone Ring Bore Depth
J: Bolt Circle
K: Bolt Pattern
L
Brake
Face Dia
P
Brake
Face Width
I
Hub Pilot
N
Overall
Depth
G - Stud PN M - Cup
to Drum
Thread Stud Stand
Out
O
Cup Face
to Mtg.
Assy
Weight
Drum
2027 Series Assemblies
HM218210 / HM218248
HM212011 / HM212049
Std. Hub Weight
37 lbs.
001-00133
Hub Pilot, M22 x 3.97 Stud, 12.25 x 7.5" Drum
54244-01
12.25 9.84
9.00 11.22
M22 x 1.5
2.65
10.44
127
0.80
PRT-00117
001-00133L
Hub Pilot, M22 x 4.82 Stud, 12.25 x 7.5" Drum
54244-01
12.25 9.84
9.00 11.22
M22 x 1.5
3.50
10.44
129
0.80
PRT-00118
Option "T" - ABS Tone Ring
6.77
PRT-00981
80-Tooth Tone Ring
Part Number
Description
Pitch Diameter
Notes
Fill port option available.
