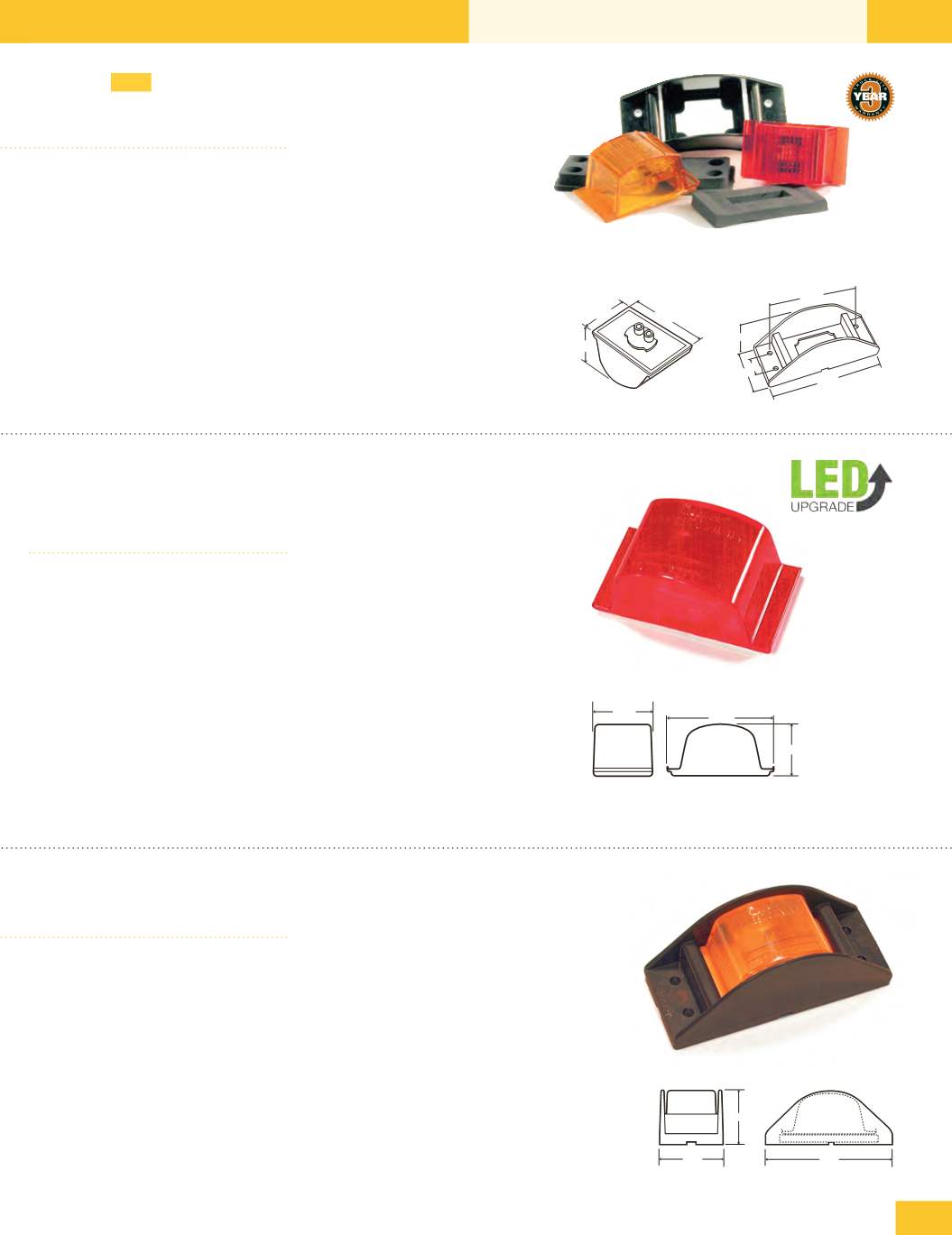

75
M/C
LED
12
®
Series
PC Rated Sealed
6 Diode Pattern
Material:
• Polycarbonate lens & housing
• Mounting bracket (ABS)
Light Source:
• Light Emitting Diodes (LEDs)
• Designed at 13.5v, 0.12 amp
Recommended Accessories:
• 12723 gray bracket
• 12724 brown bracket
• 12725 black bracket
• 97921 lamp gasket
• 97925 bracket gasket
• Plugs: Pages 225-228
FMVSS:
• P2,PC
2.90
1.40
1.60
1.92
4.90
2.03
3.86
.80
• SAE PC rated for combination
clearance/marker applications
• Snap-in lamp makes installation
fast & easy
• Standard PL-10 connection
• Lamp gasket #97921 required
for proper lamp & bracket fit
12275R Red lamp
12275Y Yellow lamp
2.900
1.600
1.400
See above
12
®
Series
PC Rated Sealed
Material:
• Polycarbonate lens & housing
• Foam gaskets
Light Source:
• 12v designed at 14v,
0.33 amp, 2 cp
• 24v designed at 28v,
0.17 amp, 3 cp
Recommended Accessories:
• 12723 gray bracket
• 12724 brown bracket
• 12725 black bracket
• 97921 lamp gasket
• 97925 bracket gasket
• Plugs: Pages 225-228
FMVSS:
• P2,PC
• Standard replacement for UPS
• Sonically sealed lens & housing
• Standard PL-10 connection
• 12 & 24 volt models
• SAE PC rated for combination
clearance/marker applications
• Optional mounting gasket to
improve seal between lamp & body
• Replaces Signal-Stat 1111 series
12200R Red lamp
12200Y Yellow lamp
12200C Clear lamp
12201Y Yellow lamp, 24v
12200R
1.920
2.030
4.900
Deflector Mounts
For 12
®
Series Lamps
Material:
• ABS plastic mounts
• Polycarbonate lens & housing
• Foam gaskets
Kit Components:
12001R/Y/C kits:
1 - 12200R/Y/C lamp
1 - 94850 plug
12003R/Y/C kits:
1 - 12200R/Y/C lamp
1 - 12723 gray mount
1 - 94919 plug
FMVSS:
• P2,PC
• High impact plastic branch deflector mount
• Snap-in lamp design for easy replacement
• SAE PC rated for combination clearance/
marker applications
• Standard PL-10 connection
• Standard replacement on UPS models
12001R Red kit w/brown mount & 94850 plug
12001Y Yellow kit w/brown mount & 94850 plug
12003R Red kit w/gray mount & 94919 plug
12003Y Yellow kit w/gray mount & 94919 plug
.210 screw hole diameter
