CAMSHAFTS

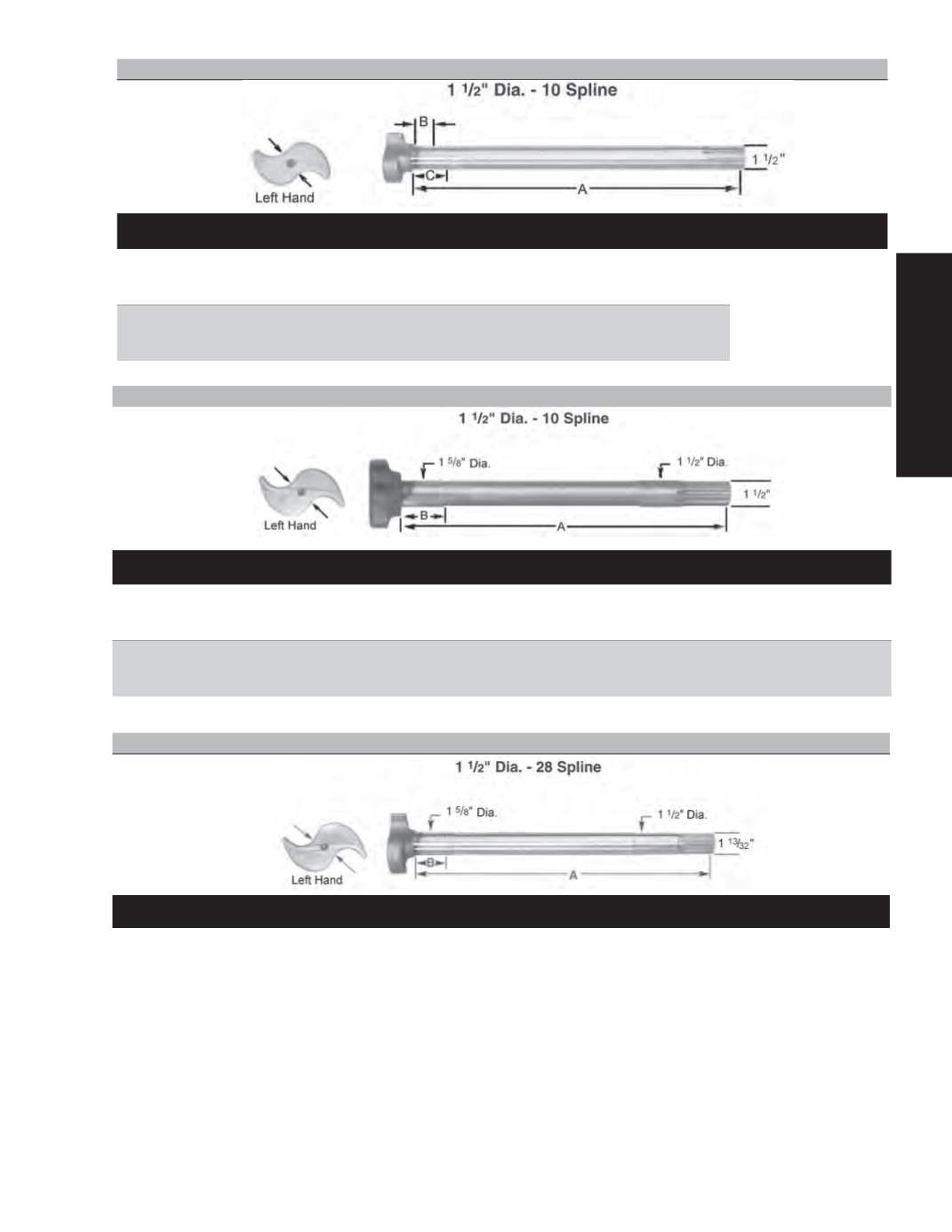

BRAKE CAMSHAFTS — TRAILER AXLE
FOR EATON TRAILER AXLES WITH 12-1/4” DIA. BRAKES - Double Groove
EUCLID NO.
HEAD END
NOMINAL
HEAD DIM.
REPLACES
A
B
C
CAMSHAFT
REPAIR KIT
BRAKE
REPAIR KIT
APPLICATION INFORMATION
E-1394
LH
1-1/16”
Eaton 820250
20-5/16” 1-11/32” 2-7/32”
E-2494 E-2126 For use with late model Spider
E-2487 & early model Spider
E-1399. Use with Air Ride
Suspension
E-1393
RH
Eaton 820249
E-2493
LH
1-1/16”
Eaton 820243
22-5/16” 1-11/32” 2-7/32”
E-2494 E-2126
E-2492
RH
Eaton 820244
FOR EATON TRAILER AXLE WITH “501” SERIES WITH 16-1/2” BRAKES
EUCLID NO.
HEAD END
NOMINAL
HEAD DIM.
REPLACES
A
B
CAMSHAFT
REPAIR KIT
BRAKE REPAIR
KIT
GENERAL INFORMATION
E-2693
LH
1-9/32”
Eaton 125034
19-1/2” 2-7/32” E-2696A E-1887AHD
Used on Eaton Trailer Axles
with 501 Series Brakes
E-2694
RH
Eaton 125035
E-4721
LH
1-9/32”
Eaton 125030
23-3/4” 2-7/32” E-2696A E-1887AHD
For use on Eaton 501 Series
Brakes
E-4720
RH
Eaton 125031
FOR EATON TRAILER AXLE WITH “501” SERIES WITH 16-1/2” BRAKES
EUCLID NO.
HEAD END
NOMINAL
HEAD DIM.
REPLACES
A
B
CAMSHAFT
REPAIR KIT
BRAKE REPAIR
KIT
GENERAL INFORMATION
E-4723
LH
1-3/8”
Eaton 125042
20-7/32”
2-13/32”
E-2696A E-1887AHD
E-4722
RH
Eaton 125043
2-13/32”
All Euclid Cam Lengths are measured from under Cam Head to beginning of Lock Ring Groove.
