CAMSHAFTS
BRAKE CAMSHAFTS — TRAILER AXLE

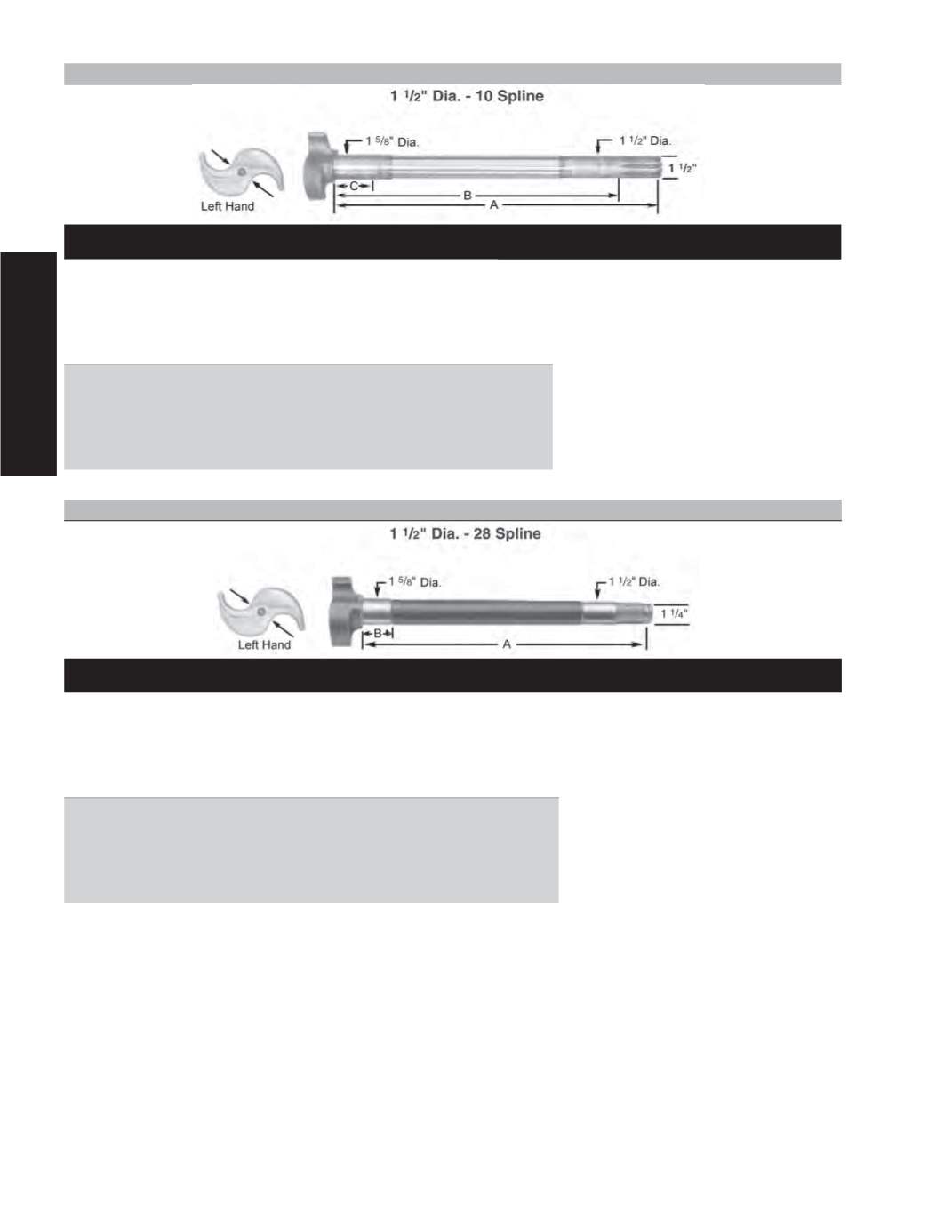

FOR EATON TRAILER AXLES WITH 16-1/2” “ES” “EXTENDED SERVICE” BRAKES
EUCLID NO.
HEAD END
NOMINAL
HEAD DIM.
REPLACES
A
B
C
CAMSHAFT
REPAIR KIT
BRAKE
REPAIR KIT APPLICATION INFORMATION
E-5496
LH
1-1/8”
Eaton 7-806654
23-3/4” 21-7/16” 2-5/32”
E-2696A
E-5481A
(ES)
E-10244
(ES II)
These cams are “extended
life” versions of this
manufacturer’s “standard
version”. If retrofitting from
“standard” to “extended life”
camshafts, Euclid strongly
recommends replacing both
cams on a single axle or all
cams on tandem axles to
promote a balanced brake
condition.
E-5497
RH
Eaton 7-806655
E-5494
LH
1-1/8”
Eaton 808078
19-1/2” 17-3/16” 2-7/32”
E-5495
RH
Eaton 808079
FOR EATON TRAILER AXLES WITH 16-1/2” “ES” “EXTENDED SERVICE” BRAKES
EUCLID NO.
HEAD END
NOMINAL
HEAD DIM.
REPLACES
A
B
CAMSHAFT
REPAIR KIT
BRAKE
REPAIR KIT
GENERAL INFORMATION
E-9057
LH
1-1/8”
Eaton 7-810538
19-1/2”
2-5/32”
E-2696A
E-5481A
(ES)
E-10244
(ES II)
These cams are “extended
life” versions of this
manufacturer’s “standard
version”. If retrofitting from
“standard” to “extended life”
camshafts, Euclid strongly
recommends replacing both
cams on a single axle or all
cams on tandem axles to
promote a balanced brake
condition.
E-9058
RH
Eaton 7-810539
E-9059
LH
1-1/8”
Eaton 810025
23-3/4”
2-7/32”
E-9060
RH
Eaton 810026
All Euclid Cam Lengths are measured from under Cam Head to beginning of Lock Ring Groove.
