Truck-Lite Full Line Product Catalog
Customer Service: 800-562-5012 / Technical Support: 888-562-5012
37

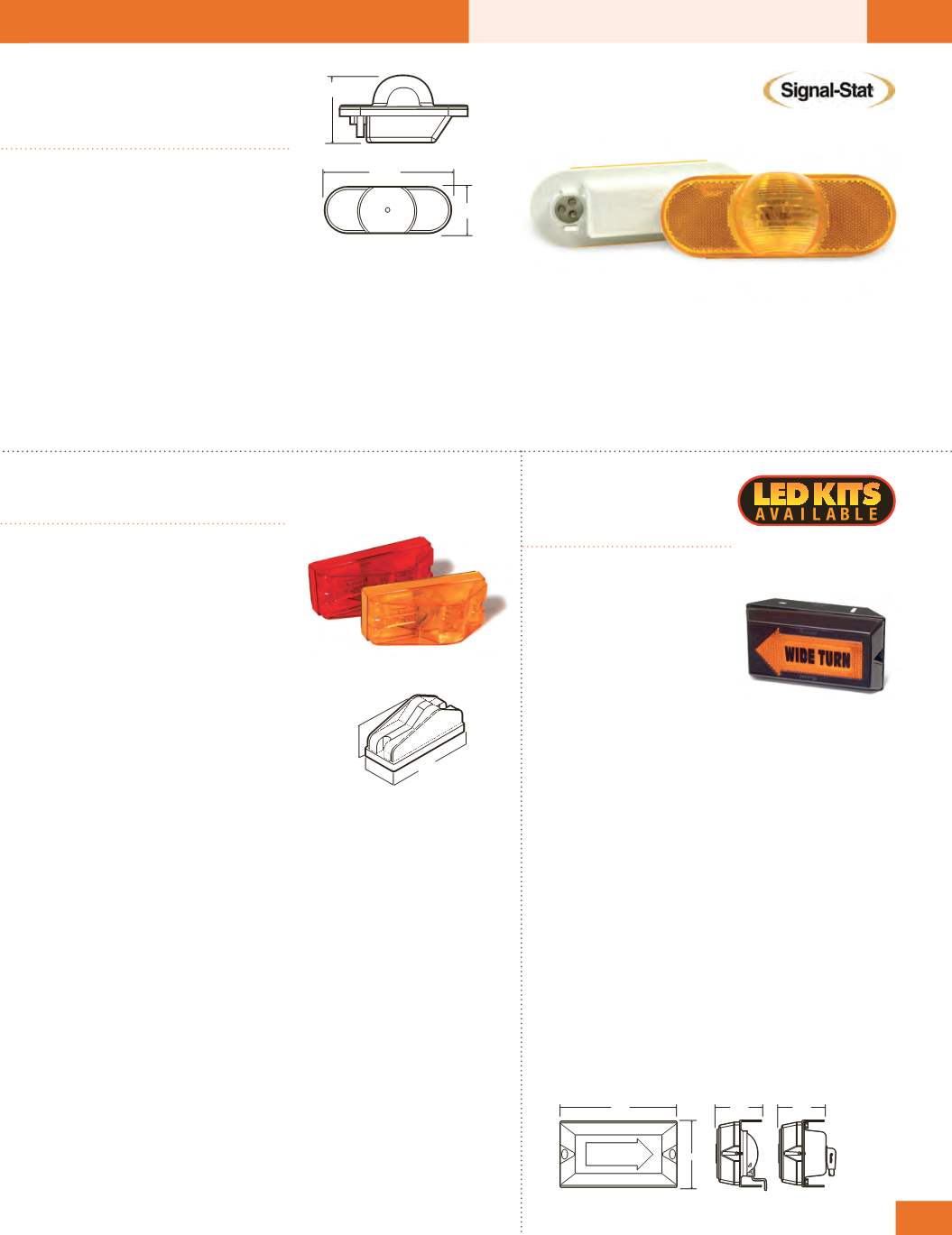

TURN SIGNAL LAMPS
40
®
Series
Wide Turn
Sealed
Material:
• Polycarbonate lens
• Steel bracket
• Black PVC grommet
• 16 or 14 gauge wire
Light Source:
• Single filament baseless
bulb
• 12v bulb designed at 2.1,
32 cp
Kit Components:
40802 & 40803 open kits:
2 - 40204 lamps
2 - 40700 grommets
1 - 40810 bracket
1 - 99152 universal lens
1 - 94932 PL3 “Y” adapter
40804 & 40805 enclosed kit:
2 - 40204 lamps
2 - 40700 grommets
1 - 40810 bracket
1 - 99152 universal lens
1 - 93843 or 93844 harness
40812 & 40830 enclosed kit:
2 - 44201Y lamps
2 - 40700 grommets
1 - 40810 bracket
1 - 99152 universal lens
1 - 93851 harness
6.476
2.303
2.980
6.476
2.303
2.980
Male Pin Side
Turn & Marker
Sealed
Material:
• Polycarbonate lens & housing
• PVC grommet
• 16 gauge wire
Recommended Accessories:
• Mounting: Pages 256-257
FMVSS:
• A,E,E2,P2
• Male pin connections
• Features side indicator, marker clearance & reflector functions
• Narrow width facilitates horizontal mounting
• Meets SAE J2039 recommendation for side turn signal
• Replaces Grote
®
#52533
69202Y Yellow lamp
6.875
12.900
4.190
4.190
22
®
Series Side Turn
Sealed
Material:
• Polycarbonate lens & housing
• Foam gasket
• 16 gauge wire
Light Source:
• Dual filament baseless bulb
• 12v bulb designed at 2.1/
.49 amps, 32/2 cp
Kit Components:
22002R/Y kits:
1 - 22202R/Y lamp
1 - 94993 right angle plug
22004R/Y kits:
1 - 22006R/Y lamp & gasket
1 - 94993 right angle plug
Recommended Accessories:
• 97987 lamp gasket
FMVSS:
• Red: P2
• Yellow: E,P2
• Features dual contact marker clearance and side turn or
auxiliary turn functions
• Red lamp should be used for rear vehicle applications
• Yellow version exceeds SAE J2039 side turn & marker
standards
22002R Red, kit
22002Y Yellow, kit
22004R Red, kit w/gasket
22004Y Yellow, kit w/gasket
22202R Red lamp
22202Y Yellow lamp
22006R Red lamp w/gasket
22006Y Yellow lamp w/gasket
5.94
2.41
2.40
4.80 mounting holes
22004Y
22004R
40802
• Features large outer lens for
greater visibility
• Includes slotted bracket
for ease of installation &
adjustment
• Available with enclosed
housing for extra protection
40802 LH, kit w/open back
40803 RH, kit w/open back
40804 LH, kit w/enclosed back
40805 RH, kit w/enclosed back
40812 RH, LED kit w/enclosed
back
40830 LH, LED kit w/enclosed
back
40802, 40803
40804, 40805,
40812, 40830
