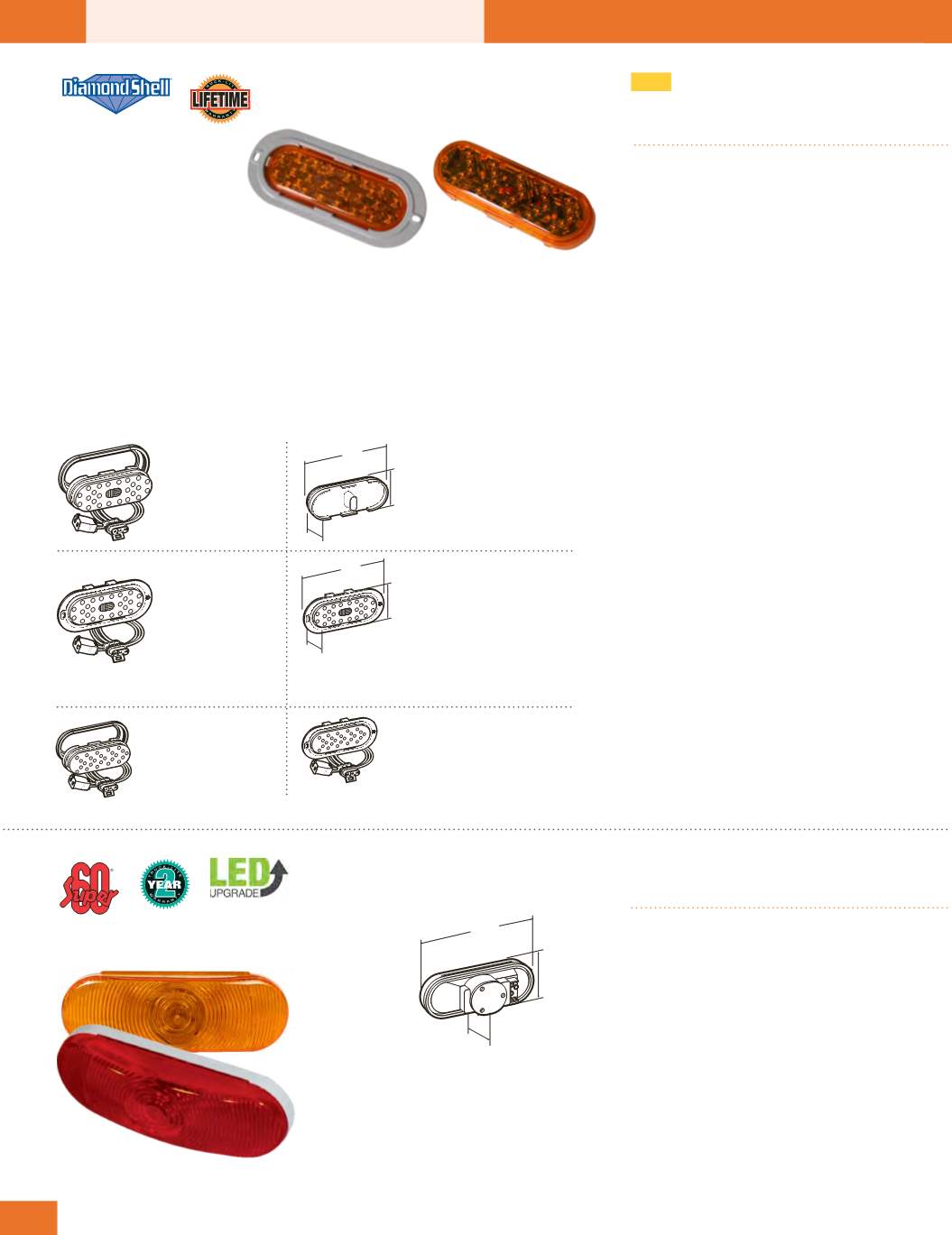

TURN SIGNAL LAMPS
SIG
Customer Service: 800-562-5012 / Technical Support: 888-562-5012
38
60280Y
60272Y
60275Y
7.88
1.62
3.31
6.50
1.62
2.32
LED
60
®
Series
Auxiliary Turn &
Sequential Arrow
Material:
• Polycarbonate or acrylic lens
& housing
• ABS flange
• PVC grommet
• 16 gauge wire
Light Source:
• Light Emitting Diodes (LEDs)
26 Diodes (Aux. Turn)
25 Diodes (Seq. Arrow)
• 12v turn lamp designed at 14v,
.42a (major), .10a (minor)
• 12v sequential arrow designed
at 14v, .12a (major), .08a (minor)
Kit Components:
60075Y, 60036Y & 60080Y
grommet kits:
1 - 60275Y, 60255Y or 60280Y lamp
1 - 60700 grommet
1 - 94706 adapter plug
60072Y & 60082Y gray
flange kits:
1 - 60272Y or 60282Y lamp & flange
1 - 94706 adapter plug
Recommended Accessories:
• Mounting: Pages 262-263
• Plugs: Pages 213-215
• 60750 gray flange
• 60725 black flange
FMVSS:
• Red: E2,P2,P3
• Sequential: P2
• Auxiliary turn is a two function lamp & complies with SAE
592e & 2042 on both functions
• Sequential arrow is to be used as an auxiliary lamp only
& requires a 50% on time flasher, #97231
• Not suitable for “stand alone” front or rear turn applications• Use 60315Y for LED side turn applications SAE J2039
LED Grommet
Mount Kits
60075Y Yellow
LED Lamps
60275Y Yellow
60891Y Yellow,
diamond shell
60255Y Yellow, 24v
LED Gray
Flange Kits
60072Y Yellow
LED Lamp &
Gray Flange
60272Y Yellow
60872Y Yellow,
diamond shell
LED Lamp &
Black Flange
60276Y Yellow
LED Sequential Arrow
60080Y Yellow,
grommet kit
60280Y Yellow lamp
LED Sequential Arrow
60082Y Yellow, flange kit
60282Y Yellow, lamp & gray flange
60286Y Yellow, lamp & black flange
6.50
2.50
2.25
See Above
Super 60
®
Turn Signal
Sealed
Material:
• Polycarbonate lens & housing
• PVC grommet
• 16 gauge wire
Light Source:
• Designed at 13.5v, 2.1 amps, 32
cp
Kit Components:
60001R/Y grommet kits:
1 - 60201R/Y lamp
1 - 60700 grommet
1 - 94992 right angle plug
Recommended Accessories:
• Mounting: Pages 262-263
• Plugs: Pages 213-215
FMVSS:
• I6
• Mount horizontally or vertically
60001R Red, grommet kit
60001Y Yellow, grommet kit
60201R Red lamp
60201Y Yellow lamp
60201R
60201Y
