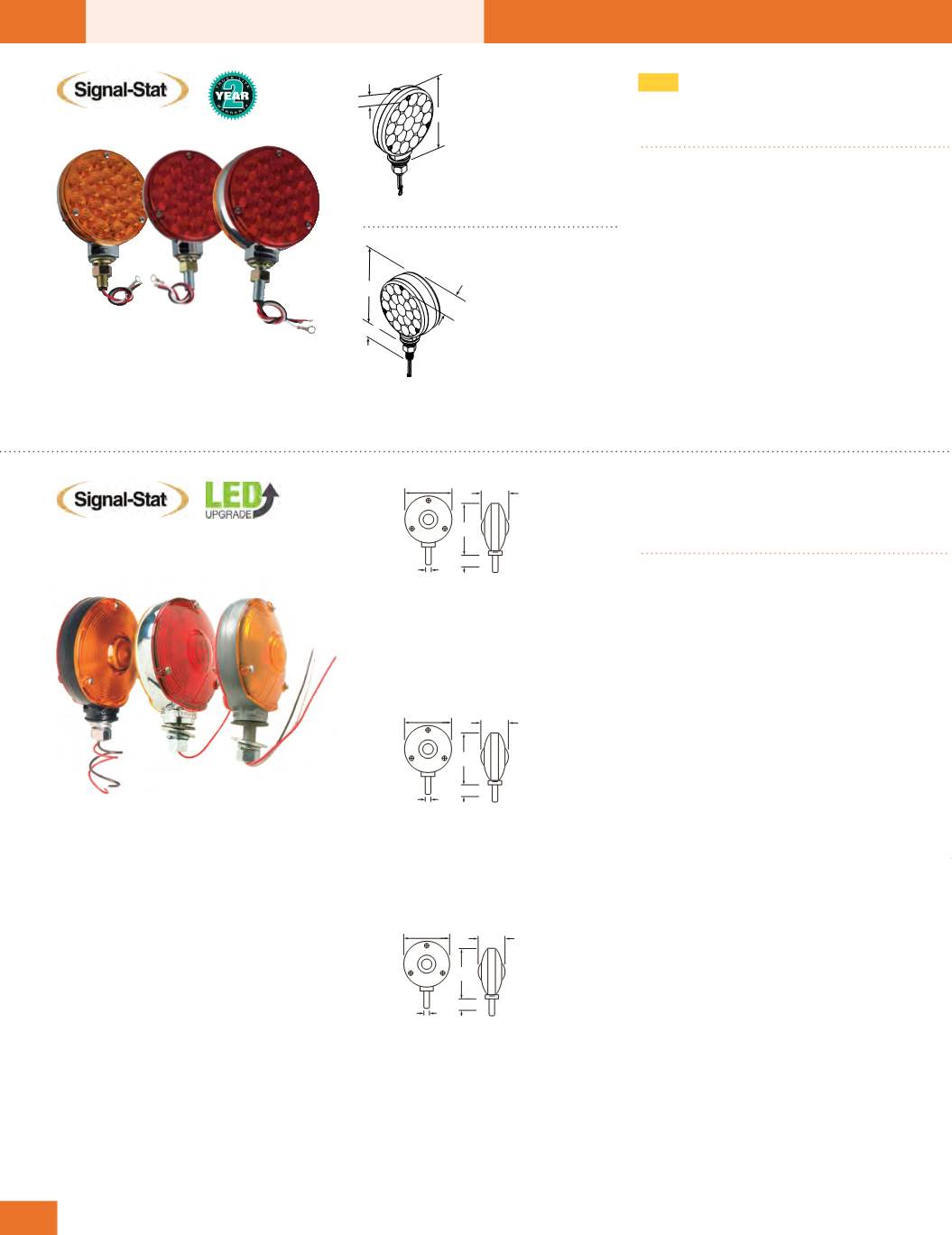

PEDESTAL LAMPS
SIG
Customer Service: 800-562-5012 / Technical Support: 888-562-5012
44
4.5"
1.7"
4.60
1.70
1.50
LED
Single & Double
Face Pedestal Lamps
24 Diode Pattern
Material:
• Polycarbonate lens
• Die cast housing
Light Source:
• Light Emitting Diodes (LEDs)
• Double face designed at 12.8v
major 0.35 +/- 1.10 amp
minor 0.025 +/- 0.075 amp
• Single face designed at 12.8v
Red: major 0.13 +/- 0.34 amp
Red: minor .005 +/- .023 amp
Yellow: major 0.260 +/- 0.45 amp
Yellow: minor .015 +/- .035 amp
FMVSS:
• Red: I6,S2,T
• Yellow: I6,P
• 24 diode pattern
• Chrome plated housing
• Ideal for show trucks, highway mowing,
municipal & farm equipment
Single Face LED
Pedestal Lamps
2751 Red lamp
2751A Yellow lamp
Double Face LED
Pedestal Lamps
2750 Red/Yellow
lamp
1/2 -
20 stud
1/2 -
20 stud
4.25
2.39
4.62
1.31
1/2-20
4.25
2.39
4.62
0.88
1/2-20
4.25
2.39
4.62
0.88
1/2-20
See Above
Double Face
Pedestal Lamps
Bulb Replaceable
Material:
• Acrylic lens
• Die cast housing
• 16 gauge wire
Light Source:
• Bulb: #1156 single contact
• Bulb: #1157 double contact
Replacement Parts:
• 9016 red lens
• 9021 red lens kit
• 9016A yellow lens
• 9021A yellow lens kit
• 9016W clear lens
• 9021W clear lens kit
• 9016B blue lens
• 9016G green lens
• 9102 single contact wire
• 9101 double contact wire
FMVSS:
• One wire: I
• Two wire: I,P,S,T
• 3805Y115 requires Phillips #28S
11/4SC or GE #13655 bulb
• For vehicle application with
vehicle width under 80” wide
• Pigtail with spring and
thermoplastic wire exits via
hollow stud
Chrome Housing
3802 Red/Yellow lamp, one wire
3812 Red/Yellow lamp, two wire
Gray Housing
3810
Red/Yellow lamp, three wire, shock/mount w/
1-5/16” stud ground wire for fiberglass fenders
3805Y115
Red/Red lamp, railroad crossing lamp
Black Housing
• Mack #47M0251P1
2801 Red/Yellow lamp, one wire
2803 Red/Yellow lamp, two wire
