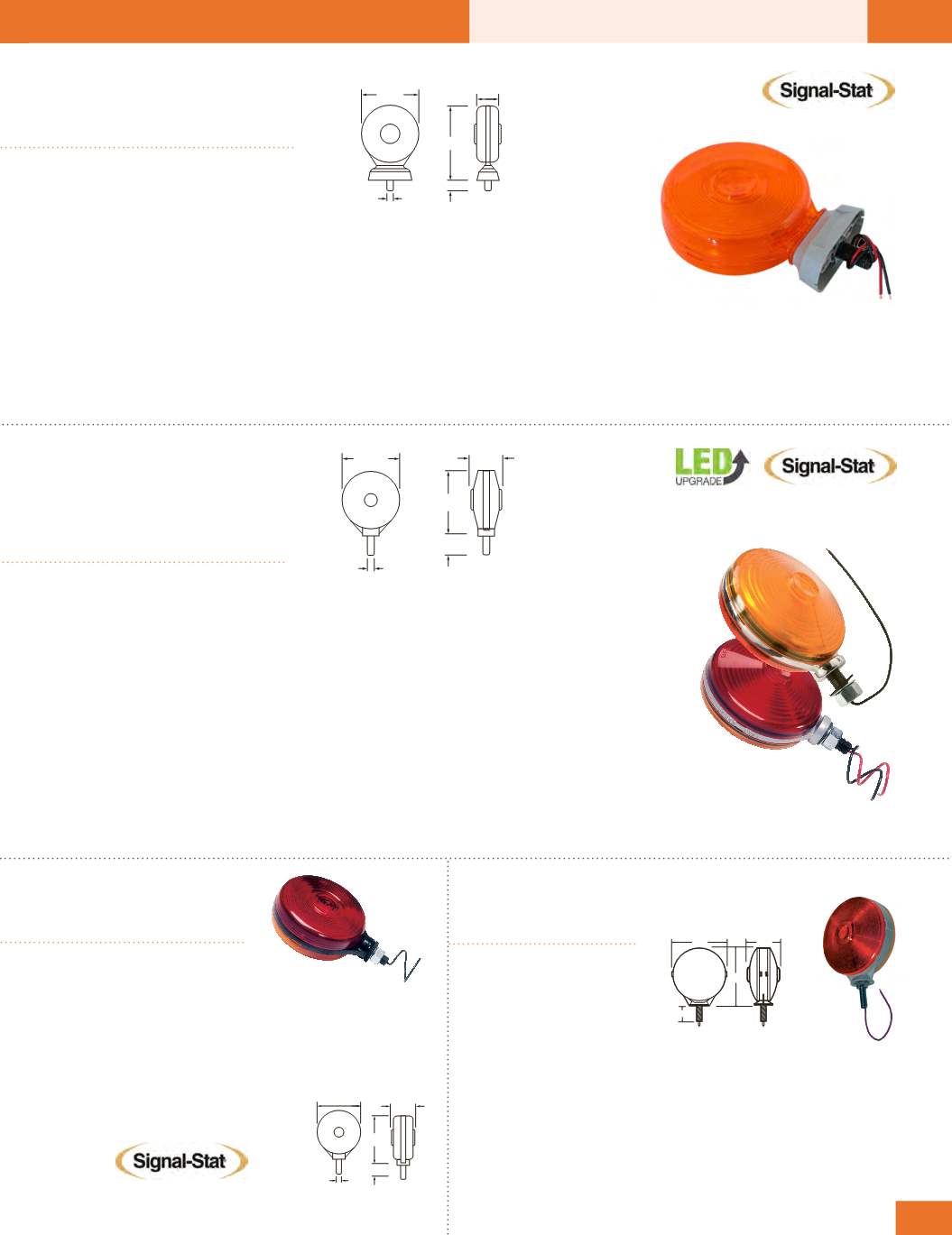

PEDESTAL LAMPS
SIG
Customer Service: 800-562-5012 / Technical Support: 888-562-5012
45
70300
Double Face
Pedestal Lamp
Bulb Replaceable
Material:
• Polycarbonate lens & housing
• 16 or 18 gauge wire
Light Source:
• Bulb: #1156, S-8 bayonet
• Designed at 12v, 2.1 amp,
32 cp
Replacement Parts:
• 99009Y yellow lens
for 70300
• 99090R red lens for 70330R
• 99090Y yellow lens
for 70330Y
FMVSS:
• I6
4.38
1/2"-20
2.00
5.75
.88
Pedestal Style Lamps
“Knock Down” Design
Bulb Replaceable
Material:
• Polycarbonate lens & housing
• Permastat base
• 16 gauge wire
Light Source:
• Designed at 12v, 2.1 amp,
32 cp
• Bulb: #1076 T/S
• Bulb: #1157 S/T/T
Replacement Parts:
• 8936 red lens
• 8936A yellow lens
FMVSS:
• I6,P
• Ideal for highway mowing, municipal lawn,
and farm equipment
• Spring loaded “Knock-Down” feature
allows lamp to flex under impact and
return to original position
3853AA Yellow/Yellow, two wire, w/ground
3854 Red/Yellow, three wire, w/ground
4.27
1/2 – 20
1.00
4.66
2.44
See Page 44
Double Face
Pedestal Lamp
Chrome or Gray
Housing
Bulb Replaceable
Material:
• Acrylic lens
• Die cast housing
• 16 gauge wire
Light Source:
• Bulb: #1156 single contact
• Bulb: #1157 double contact
• Bulb: #1076 (3862) fiberglass
fenders
Replacement Parts:
• 9341 red lens
• 9341A yellow lens
• 9160 one wire plug
FMVSS:
• I,P,S,T
• Snap-Grip lens allows quick bulb &
lens replacement
• “O-ring” lens gasket seals out dirt
and moisture
• Mounting: Hollow stud, 1/2” diameter
3861 Red/Yellow, T/S, chrome housing
3860 Red/Yellow, T/S, gray housing
3862 Red/Yellow, T/S, ground wire for fiberglass
fenders, gray housing
3863 Red/Yellow, S/T/T, gray housing
3863
3861
4.40
.5" – 20
5.07
.90
2.00
4.730
2.570
1.370
4.360
Double Face
Pedestal Lamp
Bulb Replaceable
Material:
• Acrylic lens & housing
• 16 gauge wire
Light Source:
• Bulb: #1156
Replacement Parts:
• 8936 red lens
• 8936A yellow lens
FMVSS:
• I6
3850
• Lamp grounds through
mounting stud
3850 Red/Yellow
3850AA Yellow/Yellow
• Available as single or dual face lamp
• Dual face lamp mounts on a 3/8”- 24
stud, and single face lamp mounts
on a 7/16” - 14 stud
70300
Red/Yellow
70330R Red
70330Y Yellow
