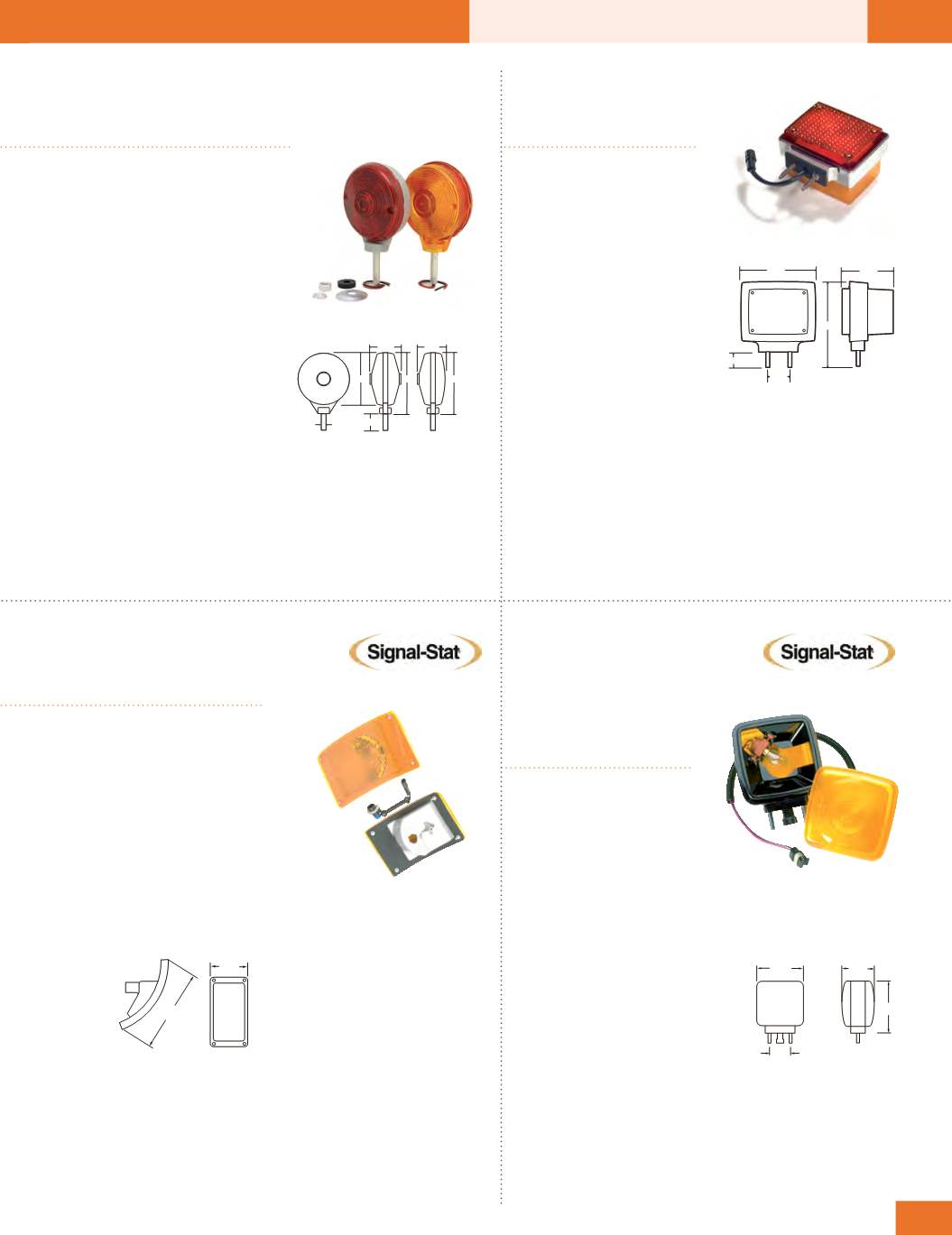

PEDESTAL LAMPS
SIG
Customer Service: 800-562-5012 / Technical Support: 888-562-5012
47
5800 Series Universal
Combination Double
Face Front Turn
Signal Lamp, Side
Marker & Reflex
Reflector
Material:
• Polycarbonate lens & housing
• 16 gauge wire
Light Source:
• 12v bulb designed at 2.1 amp,
32 cp
• Bulb: #1157
Replacement Parts:
• 9084A yellow lens
• 9120 O-ring
• 9465 harness
FMVSS:
• I6,P
Single & Double Face
Pedestal Lamp
Bulb Replaceable
Material:
• Polycarbonate lens & housing
• 16 gauge wire
Light Source:
• Designed at 12v, 2.1 amp,
32 cp
• Bulb: #1157
Replacement parts:
• 99090R red lens
• 99090Y yellow lens
• 9102 pigtail
FMVSS:
• Red: I6,S2,T
• Yellow: I6,P
• Features high impact gray plastic housing
70310R Red
70311
Red/Yellow
1.93
2.44
4.22
1.75
.437
4.81
4.81
7/16 -
14 stud
70311 70310R
Double Face
Pedestal Lamp
Bulb Replaceable
Material:
• ABS housing
• Acrylic (red) or polycarbonate
(yellow) lens
• 18 gauge wire
Light Source:
• Bulb: #1156, S-8 bayonet
• 12v bulb designed at
2.1 amp, 32 cp
• Bulb: #168, T-3-1/4 wedge
• 12v designed at .35 amp, 3 cp
Replacement Parts:
• 9102 pigtail
FMVSS:
• I6
• Side: A,P2
70352
• Replaces Ford parts E5HT-13201-AA
(LH) & E5HT-13200-AA (RH)
• Includes integral plug
70352
Red/Yellow, LH chrome
70353
Red/Yellow, RH chrome
70356
Red/Yellow, LH black
70357
Red/Yellow, RH black
5.050
4.460
3.500
1.500
1.250
1/4 - 20 studs
4.80
2.00
2.75
5.25
M6 X 1.0 thread
10.50
6.87
Navistar Universal
Front Signal Lamp
Bulb Replaceable
Material:
• Polycarbonate lens & housing
• 16 gauge wire
Light Source:
• 12v bulb designed at 2.1 amp,
32 cp
• Bulb: #3157
Recommended Accessories:
• 9467 harness
FMVSS:
• I6,P
• Side: A,P2
4097A with
9467 harness
• Navistar #1677715C91
• Accepts rear entry bulb socket and harness
assembly, not included
4097A Yellow
5800AAK
• Special Packard Metri-Pack connector
• GM #15565531
5800AA Yellow/Yellow, vertical mount
5800AAK Yellow/Yellow, vertical mount w/9465 harness
